Omron K8DT-LS1CA

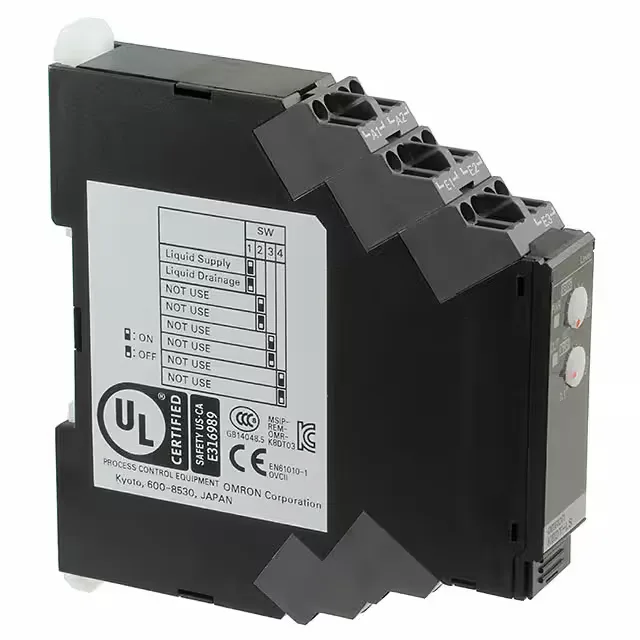

Omron K8DT-LS1CA Constant Level Controller, 100-240VAC, SPDT

MPN K8DT-LS1CA
Active

Omron K8DT series, constant level controller, order code K8DT-LS1CA, 100-240VAC supply, SPDT relay output 5A@250VAC, sensitivity 10-100kOhm, DIN rail mount, spring terminal.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8DT-LS1CA specifications
ParameterValue
SeriesK8DT
Output signalRelay
Product typeConstant Level
Supply voltage100 to 240VAC
Contact formSPDT (1 Form C)
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
Weight0.221 lb (100.24 g)
PackageBox

Product details

What the K8DT-LS1CA does on a line

The Omron K8DT-LS1CA is a constant level controller — it monitors liquid level via a conductive probe and switches a relay when the level crosses the set point. The sensitivity adjustment (10 to 100 kOhm) lets you tune the detection threshold for different liquid conductivity, from distilled water to conductive process fluids. Runs on 100-240VAC supply, so it fits standard panel power without a separate transformer. The SPDT relay contacts are rated 5A at 250VAC — enough to drive a small pump or alarm directly.

Mounting and wiring reality

The 100m max distance between controller and sensor means the probe can sit at the far end of a tank or sump. Built-in delay timer filters out surface slosh or turbulence — the relay doesn't chatter on every wave.

MPN
K8DT-LS1CA
