The K8DT-PM1CN is a DIN rail-mount phase loss and phase sequence monitoring relay from the Omron K8DT series. It detects loss or reversal of any phase on a three-phase 200 – 240 VAC supply and triggers the SPDT relay output when the fault condition persists beyond the set delay time. The delay is adjustable from 0.1 to 30 seconds, allowing to ride through momentary dips or switching transients before de-energizing the load. The relay contact is rated 5 A at 250 VAC, suitable for signalling or directly cutting a motor contactor coil.

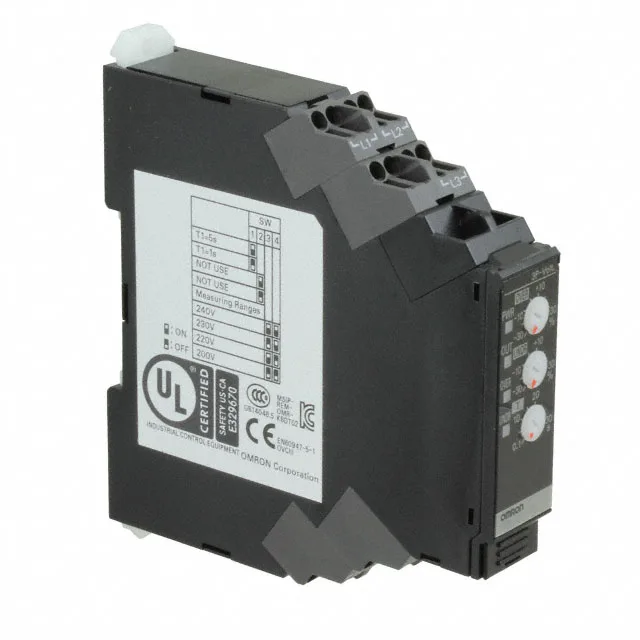

Omron K8DT-PM1CN Phase Loss/Phase Sequence Relay, 200-240VAC
MPN K8DT-PM1CN
Active
Omron K8DT Series Phase Loss & Phase Sequence Monitoring Relay, SPDT (1 Form C), 5A @ 250VAC, 200-240VAC Supply, Adjustable Delay 0.1–30 Sec, DIN Rail Mount.
$153.03 – $176.57
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K8DT |
| Output signal | Relay |
| Product type | Phase Loss, Phase Sequence |
| Supply voltage | 200 to 240VAC |
| Mounting | DIN Rail |
| Temp operating max | 60 °C |
| Temp operating min | -20 °C |
| Package | Box |
| Delay time | 0.1 Sec to 30 Sec |
Product details
K8DT-PM1CN Datasheet
MPN
K8DT-PM1CN
