Omron K8DT-PM1TN — Process / Temperature Controllers

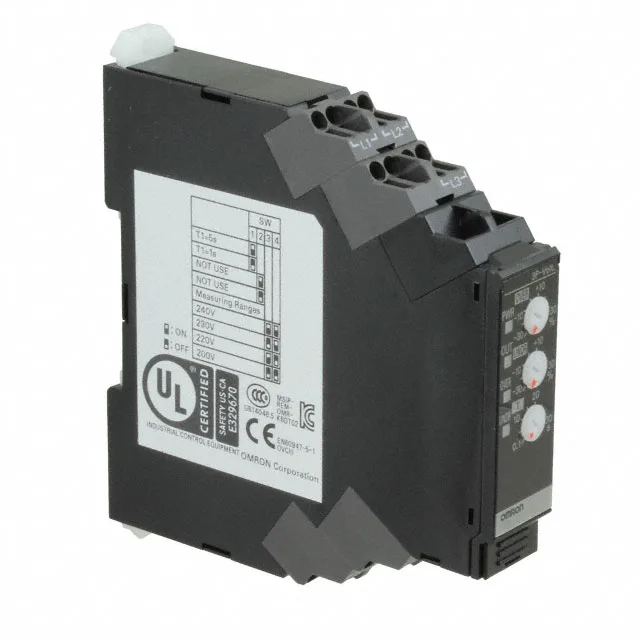

Omron K8DT-PM1TN Phase Loss/Sequence Relay, 200-240VAC

MPNK8DT-PM1TN
Active

Omron K8DT-PM1TN, Phase Loss & Phase Sequence Relay, Series K8DT, 200-240VAC Supply, Solid State Output, Adjustable Delay 0.1~30 Sec, DIN Rail Mount.

$171.80Ref. price · indicative, final on quote
Omron K8DT-PM1TN datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

K8DT-PM1TN — Identification
ParameterValue
SeriesK8DT
TypePhase Loss, Phase Sequence
K8DT-PM1TN — Electrical
ParameterValue
Supply voltage200 ~ 240VAC
K8DT-PM1TN — I/O
ParameterValue
Output typeSolid State
K8DT-PM1TN — Environmental
ParameterValue
Operating temperature-20°C~60°C
K8DT-PM1TN — Mechanical
ParameterValue
Mounting typeDIN Rail
K8DT-PM1TN — Other specifications
ParameterValue
CircuitNPN
Delay time0.1 Sec ~ 30 Sec

Product details

The Omron K8DT-PM1TN is a three-phase monitoring relay that detects phase loss and phase sequence errors, with a solid-state output and adjustable delay from 0.1 to 30 seconds.

Key Ratings & Fit

Rated for a 200-240VAC supply, the relay operates over -20°C to 60°C. The NPN circuit input is designed for sourcing-type PLC outputs. DIN-rail mounting simplifies panel integration. The adjustable delay lets you filter out momentary line dips or motor start-up inrush—set it from 0.1 sec for fast protection up to 30 sec for soft-start coordination.

Frequently asked questions

What is K8DT-PM1TN's listed type?

It is a Phase Loss and Phase Sequence monitoring relay.

What is the series of K8DT-PM1TN?

It belongs to the Omron K8DT series.
