Temperature monitoring relay from Omron's K8DT series — the K8DT-TH1CD switches on temperature threshold with SPDT 5A at 250VAC, powered by 24VAC/DC. No built-in delay; trips immediately on crossing the set point. DIN rail mount, push-in terminals accept thermocouple or RTD input.

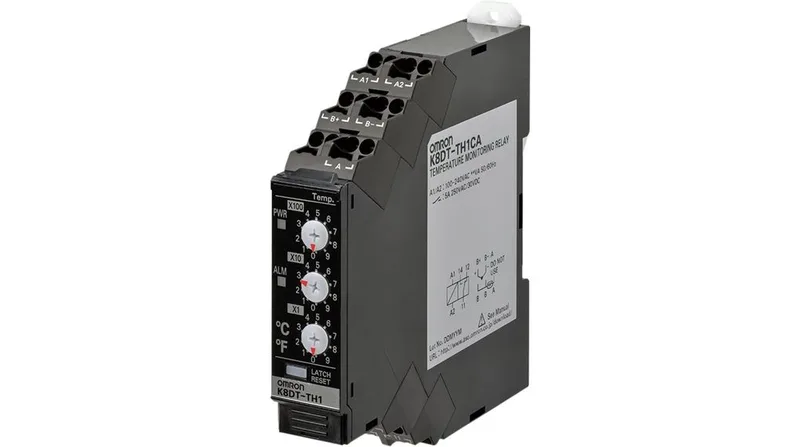

Omron K8DT-TH1CD Temperature Monitoring Relay, SPDT 5A, 24VA
MPNK8DT-TH1CD
Active
Omron K8DT Series, Temperature Monitoring Relay, K8DT-TH1CD, SPDT 5A @ 250VAC, 24VAC/DC, DIN Rail, No Delay.
$78.23 – $181.35Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K8DT |
| Type | Temperature Monitoring |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
| Parameter | Value |
|---|---|
| Output type | Relay |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C~60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | No Delay |
| Contact rating @ voltage | 5A @ 250VAC |
Product details
Frequently asked questions
What type is the K8DT-TH1CD?
The K8DT-TH1CD is a Temperature Monitoring relay.
How do I source the K8DT-TH1CD?
The K8DT-TH1CD is a current catalog part. Source availability and lead time vary — submit an RFQ for your required quantity.
MPN
K8DT-TH1CD
