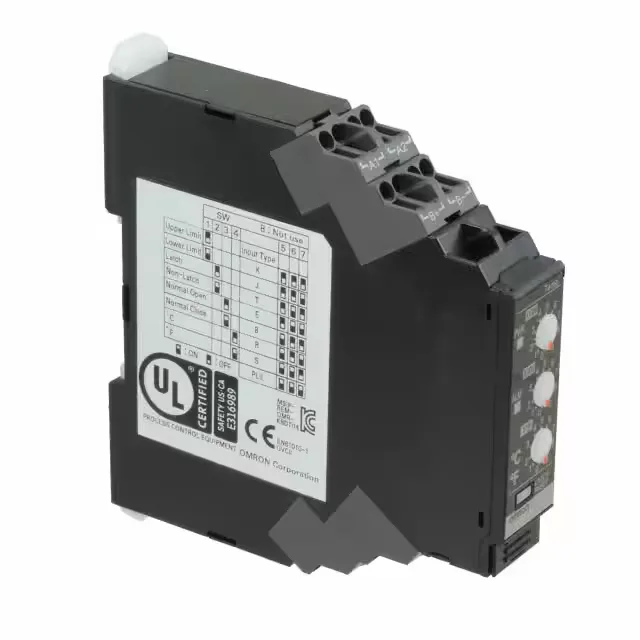

Omron K8DT-TH2CD temperature monitoring relay, SPDT (1 Form C) relay output rated 5A @ 250VAC, accepts thermocouple or RTD input via push-in terminals, operates on 24VAC/DC supply, DIN rail mount.
| Parameter | Value |
|---|---|
| Series | K8DT |
| Type | Temperature Monitoring |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
| Parameter | Value |
|---|---|
| Output type | Relay |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C ~ 60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | No Delay |
| Contact rating @ voltage | 5A @ 250VAC |
The K8DT-TH2CD is a temperature monitoring relay from the Omron K8DT series. It accepts input from a thermocouple or RTD probe (push-in terminal style) and provides a SPDT relay output rated 5A at 250VAC. The relay switches instantaneously (no built-in delay) when the measured temperature crosses the setpoint. The contact rating of 5A at 250VAC covers most alarm or load-control circuits; derate appropriately for inductive loads.
Type is Temperature Monitoring, series is K8DT.
SPDT relay output rated 5A @ 250VAC, supply voltage 24VAC/DC, operating temperature range -20°C to 60°C.
