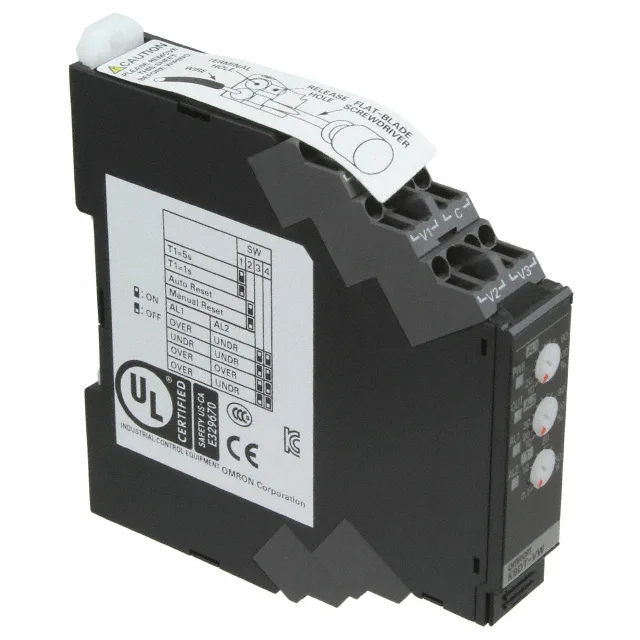

Omron K8DT series, Voltage Sensing AC/DC relay, 20-600V trip range, 0.1-30s delay, solid state output, DIN rail mount.
| Parameter | Value |
|---|---|
| Series | K8DT |
| Type | Voltage Sensing AC/DC |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Output type | Solid State |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C ~ 60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | NPN |
| Delay time | 0.1 Sec ~ 30 Sec |
| Trip range | 20 ~ 600V AC/DC |
The Omron K8DT-VW3TA is an under-/overvoltage sensing relay covering 20 to 600 V AC/DC, with an adjustable time delay from 0.1 to 30 seconds to discriminate between true faults and transient dips. It operates on a 100-240 VAC control supply and provides a solid-state NPN output for signalling to a PLC or annunciator. The low-profile DIN-rail housing fits standard control panels across a -20 to 60°C ambient range.
Mounts onto DIN rail.
20 to 600 V AC/DC, adjustable via front-panel potentiometer.
0.1 to 30 seconds, set by a front-panel dial.
100 to 240 VAC.
