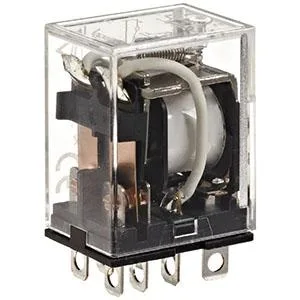

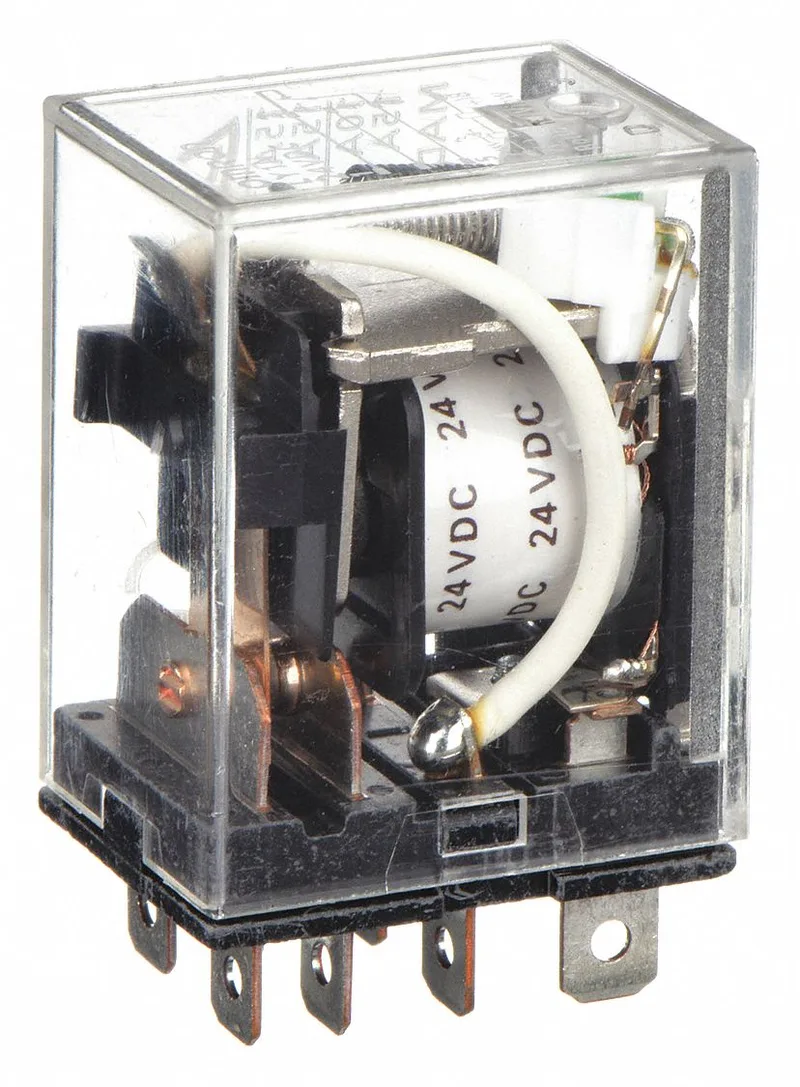

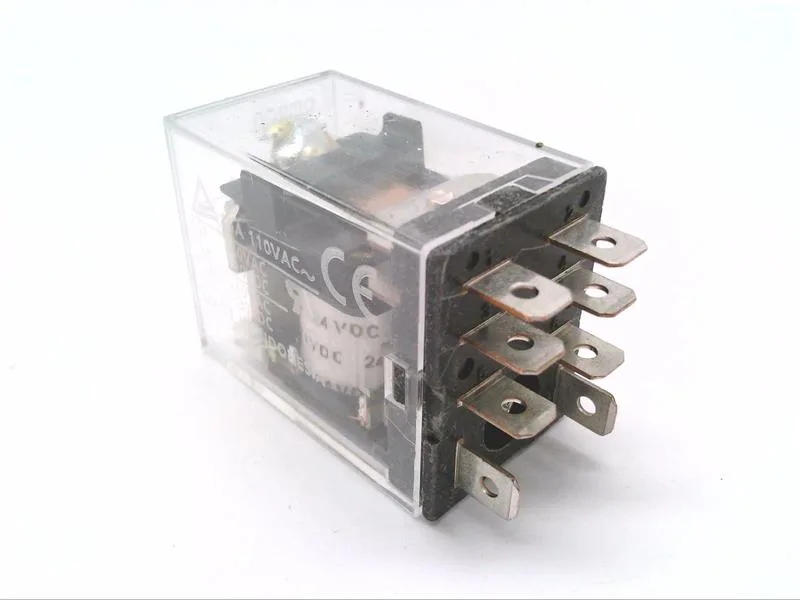

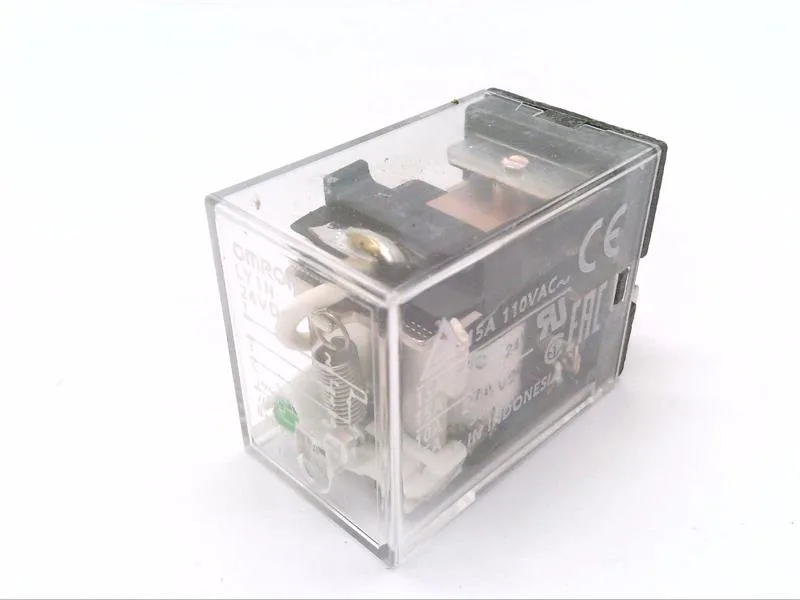

Omron LY1N-DC24
MPNLY1N-DC24
OMRON General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, 8 Pins/Terminals, SPDT
$13.23 – $22.86Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Parameter | Value |
|---|---|
| Contact form | SPDT |
| Contact rating (AC) | 10 A @ 120V15 A @ 120V |
| Mechanical life (operations) | 100,000,000 |
| Electrical life (operations) | 200,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts |
| Parameter | Value |
|---|---|
| Status indicator | LED Indicator |
| Push-to-test button | Manual Push Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Tab |
| Number of pins/terminals | 8 |
MPN
LY1N-DC24
