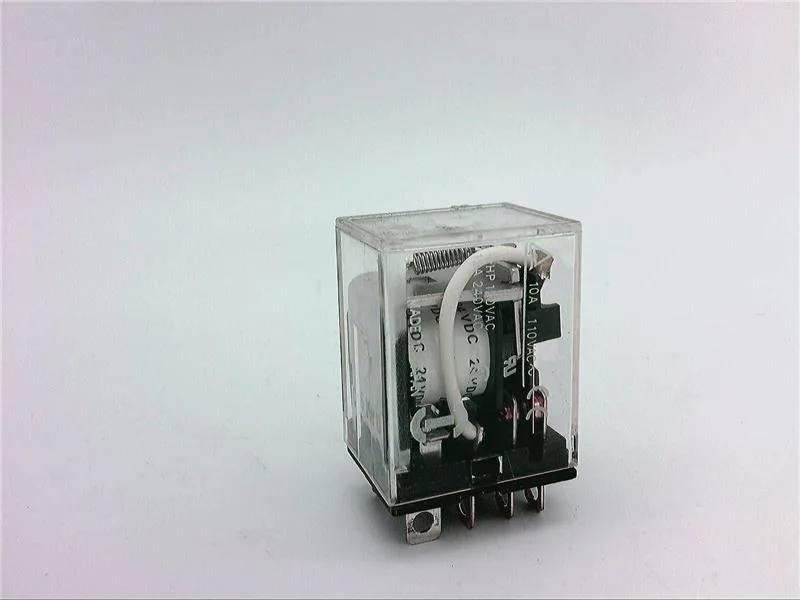

Omron LY2-D-DC24 — General Purpose Relays

Omron LY2-D-DC24

MPNLY2-D-DC24

OMRON General Purpose Relays: Socket Mounted, 24V DC, 8 Pins/Terminals, DPDT, D Socket

$26.84 – $45.66Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LY2-D-DC24 — Identification
ParameterValue
SeriesLY
LY2-D-DC24 — Contacts & Switching
ParameterValue
Contact formDPDT
Contact rating (AC)7.5 A @ 120V10 A @ 120V
Mechanical life (operations)50,000,000; 100,000,000
Electrical life (operations)200,000
LY2-D-DC24 — Coil & Supply
ParameterValue
Coil voltage24V DC
LY2-D-DC24 — Electrical
ParameterValue
Dielectric strength1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity; 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
LY2-D-DC24 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonNo Test Button
LY2-D-DC24 — Mechanical
ParameterValue
Relay mounting styleSocket
Electrical connection typePin
Number of pins/terminals8
MPN
LY2-D-DC24
