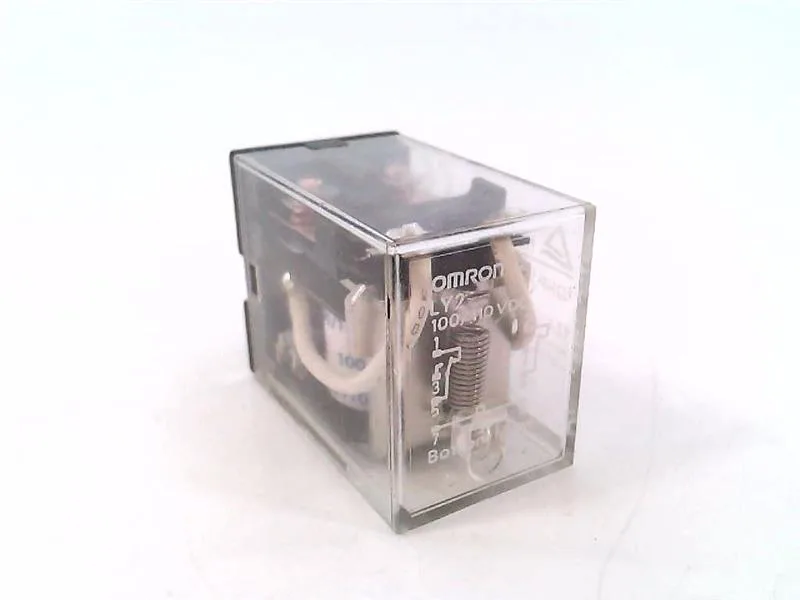

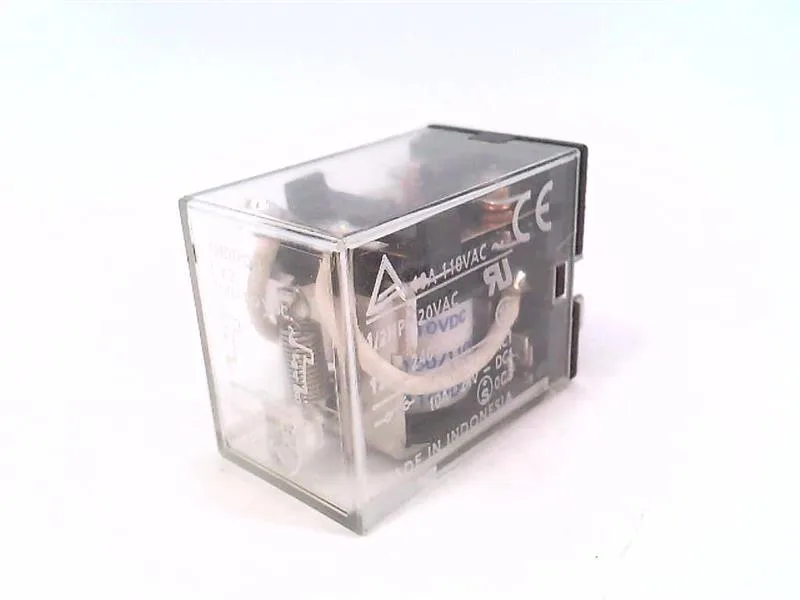

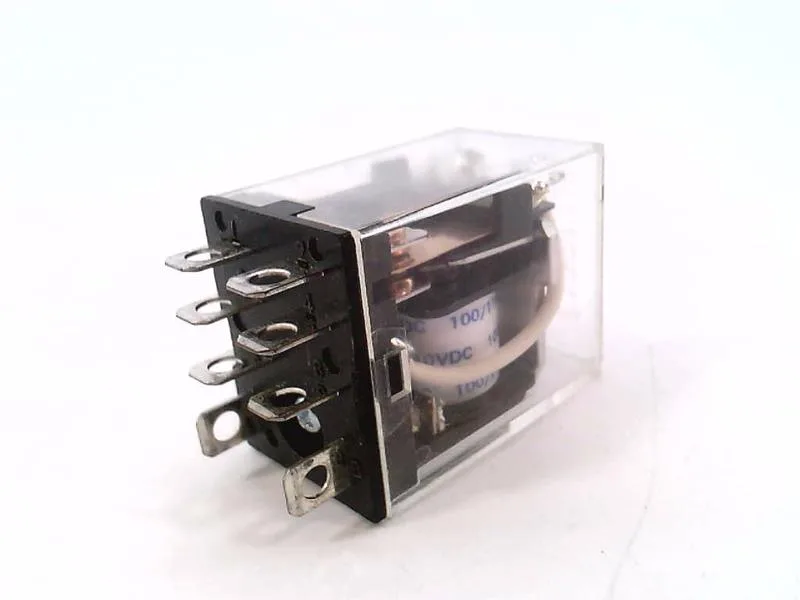

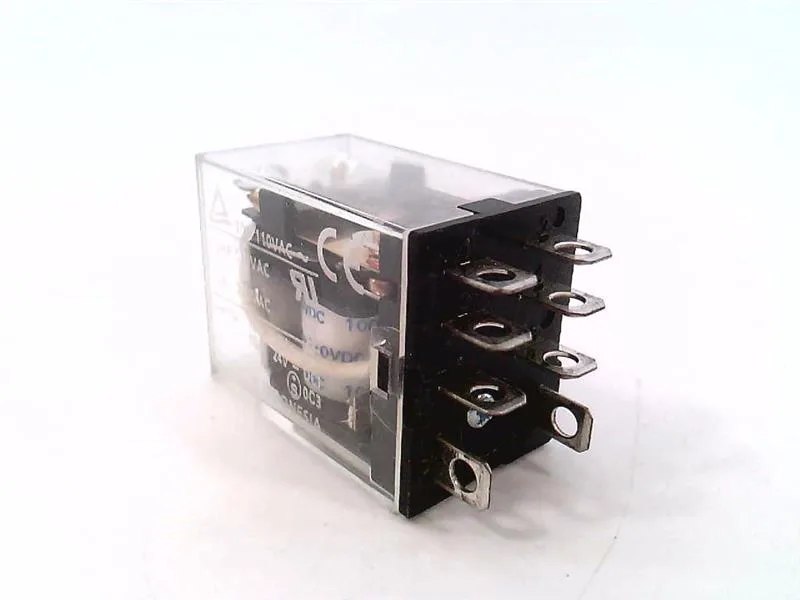

Omron LY2-DC100/110
MPNLY2-DC100/110
OMRON General Purpose Relays: Socket Mounted, 100/110V DC, 8 Pins/Terminals, DPDT, D Socket
$19.98 – $35.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 7.5 A @ 120V10 A @ 120V |
| Mechanical life (operations) | 50,000,000; 100,000,000 |
| Electrical life (operations) | 200,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 100/110V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity; 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Pin |
| Number of pins/terminals | 8 |
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Socket code | D |
| Contact rating | 5 A @ 24V10 A @ 24V |
| Horsepower @ 120V AC | 1/2 hp |
| Horsepower @ 240V AC | 1/3 hp |
MPN
LY2-DC100/110
