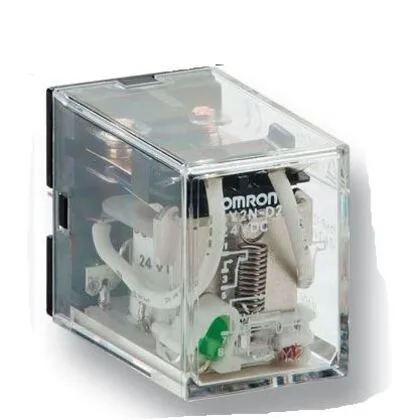

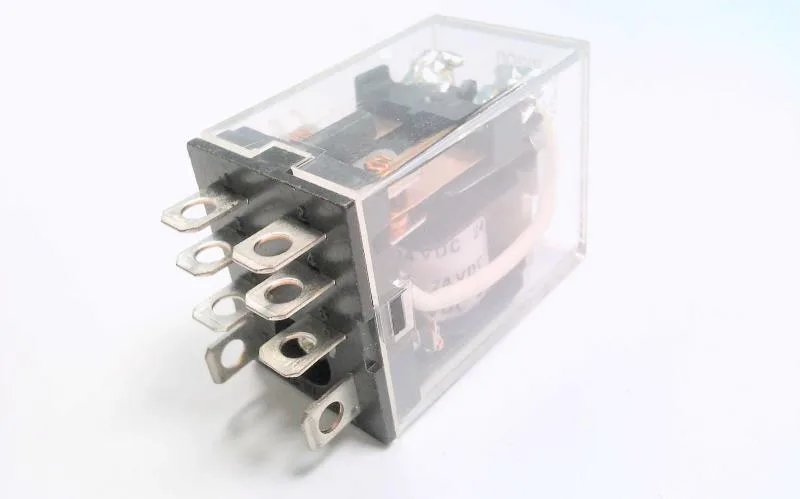

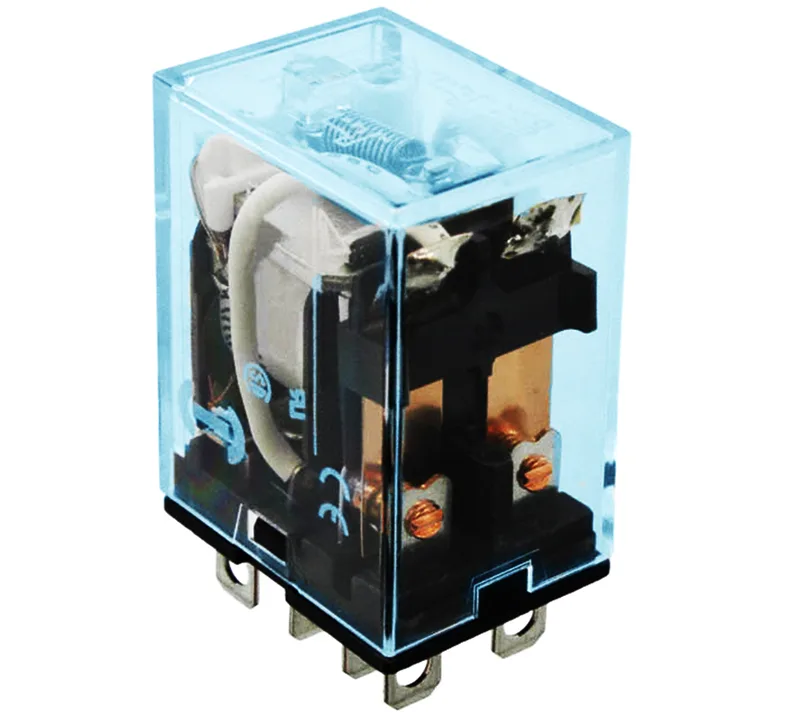

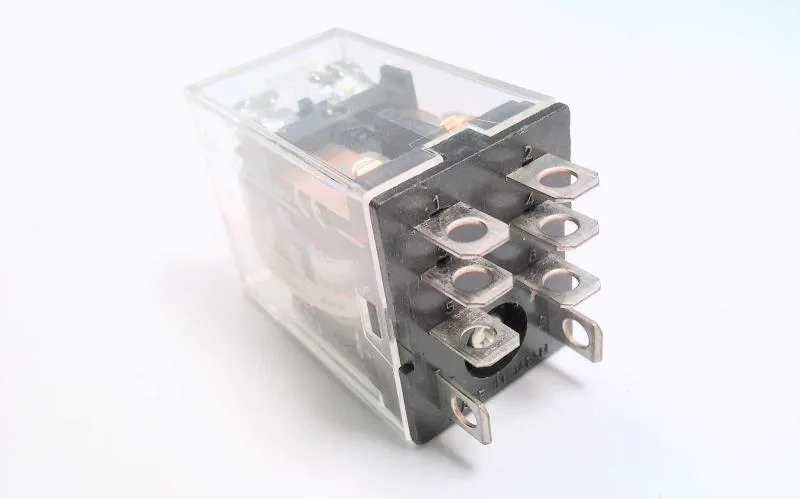

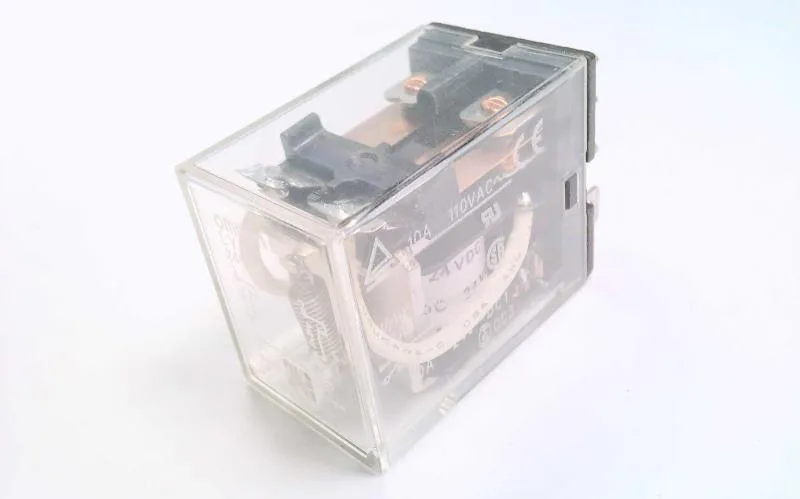

Omron LY2-DC24
MPNLY2-DC24
R8 RELAY|ORN LY2-DC24 R8 RELAY
$4.72 – $15.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Electrical connection type | Tab |
| Coil voltage | 24V DC |
| Current rating | 10 A |
| Horsepower @ 120V AC | Not Rated |
| Horsepower @ 240V AC | Not Rated |
| Contact form | DPDT |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 8 |
| Electrical operating durability | 500,000 |
| Mechanical operating durability | 100,000,000 |
| Brand | OMRON |
All specifications
| Parameter | Value |
|---|---|
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | D |
| Status indicator | No Indicator |
| Contact rating | 7.5 A @ 120V10 A @ 120V |
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts; 2,000V AC between Contacts of Different Polarity |
| Push-To-Test button | Manual Push Test Button |
MPN
LY2-DC24
