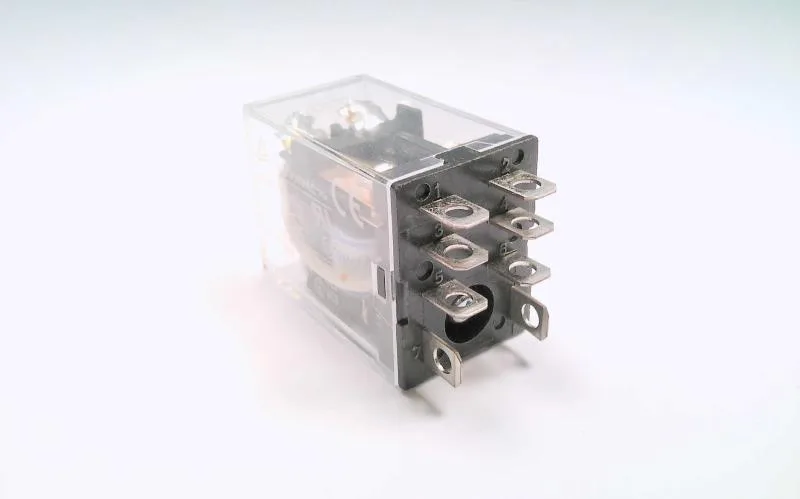

Omron LY2AC110120
MPNLY2AC110120
Standard type, Single, Plug-in, Coil ratings: 9.9mA 110 VAC, Output DPDT (10A 24V)|OMRON LYC-AC110/120 RELAY
$4.51 – $12.52Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Electrical connection type | Tab |
| Coil voltage | 120V AC |
| Coil voltage (Nominal@60Hz) | 120V AC |
| Current rating | 10 A |
| Horsepower @ 120V AC | 1/2 hp |
| Horsepower @ 240V AC | Not Rated |
| Contact form | DPDT |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 8 |
| Electrical operating durability | 500,000 |
| Mechanical operating durability | 500,000,000 |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | D |
| Status indicator | No Indicator |
| Contact rating | 7.5 A @ 120V10 A @ 120V |
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts; 2,000V AC between Contacts of Different Polarity |
| Push-To-Test button | Manual Push Test Button |
MPN
LY2AC110120
