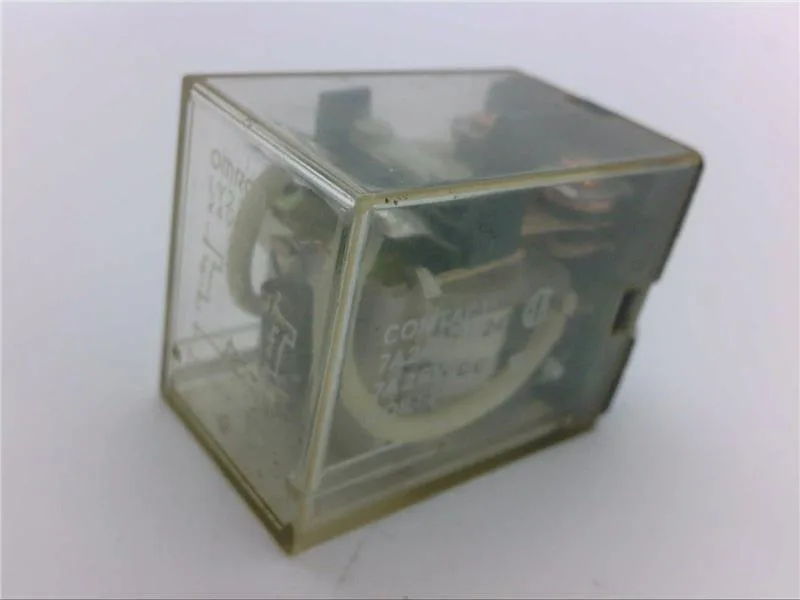

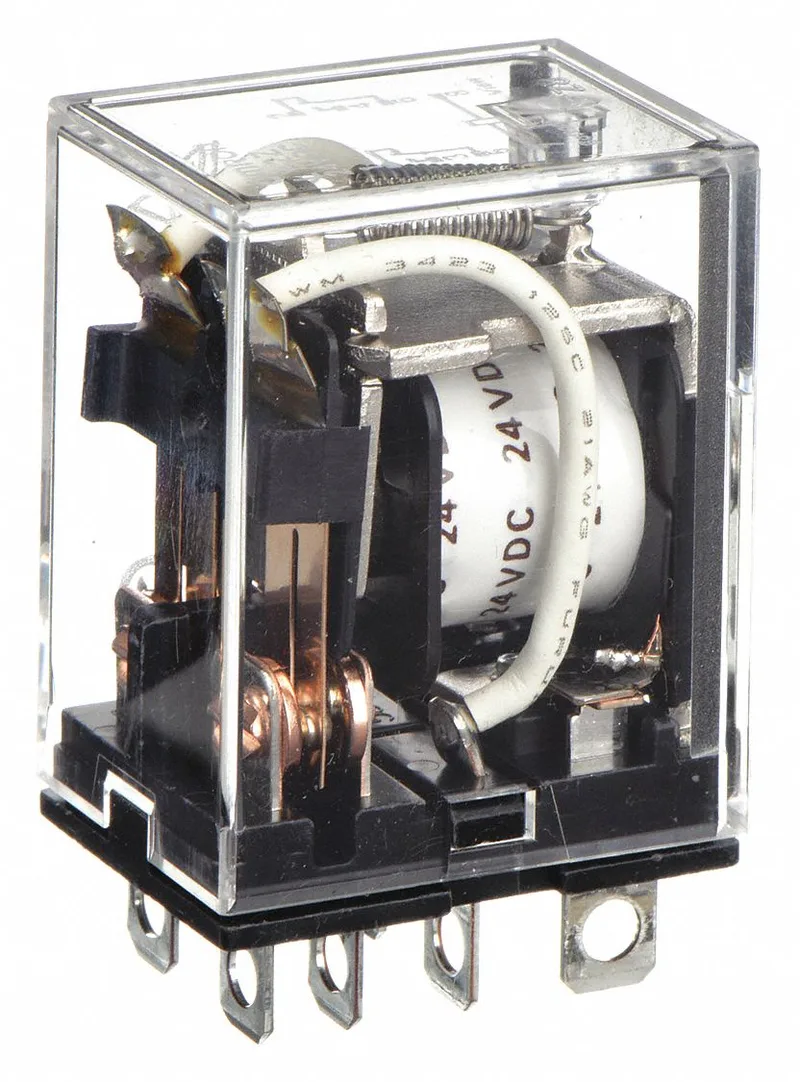

Omron LY2Z-DC24
MPNLY2Z-DC24
OMRON General Purpose Relay: Socket Mounted, 7 A Current Rating, 24V DC, 8 Pins/Terminals, DPDT
$25.67 – $36.87Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 4 A @ 120V5 A @ 120V |
| Mechanical life (operations) | 100,000,000 |
| Electrical life (operations) | 500,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts; 2,000V AC between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Tab |
| Number of pins/terminals | 8 |
MPN
LY2Z-DC24
