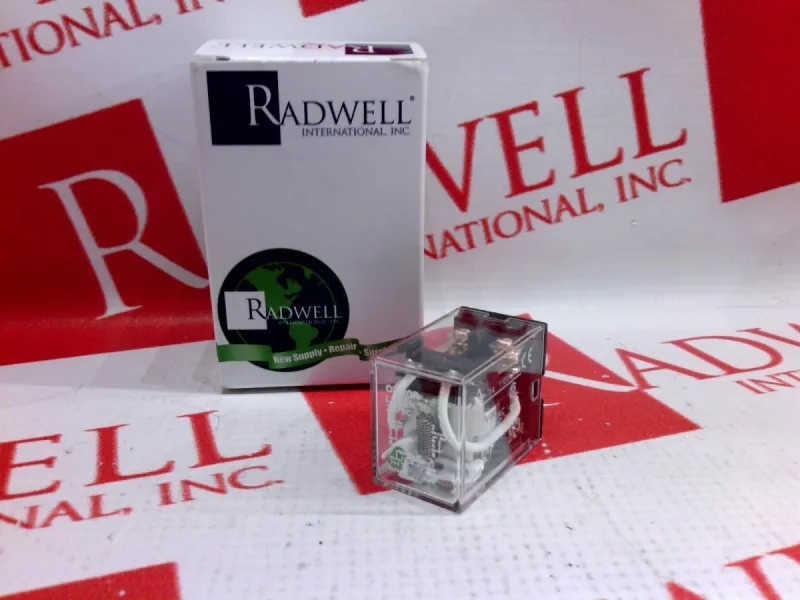

Omron LY2ZN-DC24 LY Series Relay, DPDT, 24V DC Coil

The Omron LY2ZN-DC24 is a socket-mount DPDT relay from the LY series, switching up to 5 A at 120 V AC or 5 A at 24 V DC — that's the continuous carry and break current for resistive loads, so it handles pilot-duty solenoids, contactor coils, and indicator banks inside a panel without derating down to a lower figure. The 24 V DC coil holds at nominal, drops out below about 18 V; the LED indicator across the coil gives a quick visual on pull-in when you're fault-isolating a dead output. The 1/2 hp rating at 120 V AC and 1/3 hp at 240 V AC means it can switch small single-phase motor loads — fans, pumps, conveyors under about 375 W — directly, without an intermediate contactor. That's the figure a panel builder checks when the BOM calls for a relay that both signals and powers a fractional-horsepower motor.
