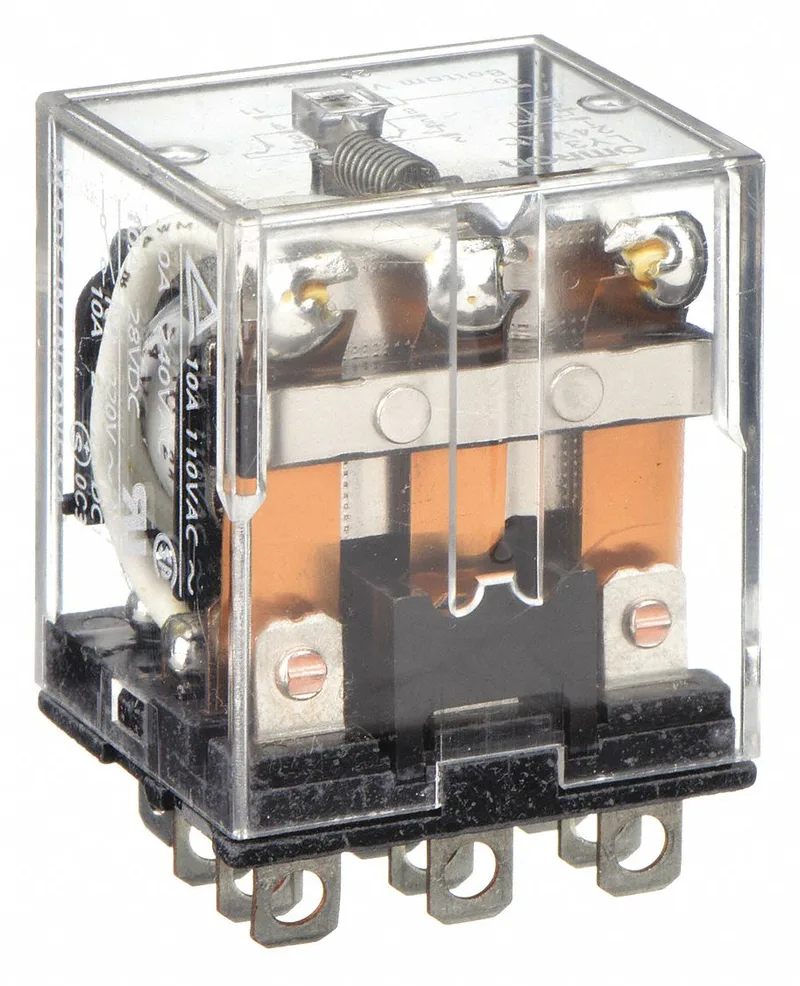

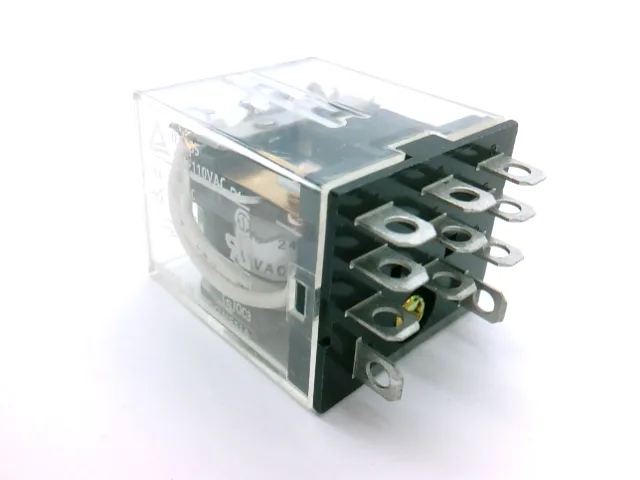

Omron LY3-AC24
MPNLY3-AC24
OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, 11 Pins/Terminals, 3PDT
$17.57 – $25.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Parameter | Value |
|---|---|
| Contact form | 3PDT |
| Contact rating (AC) | 7.5 A @ 120V10 A @ 120V |
| Mechanical life (operations) | 500,000,000 |
| Electrical life (operations) | 200,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts; 2,000V AC between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Tab |
| Number of pins/terminals | 11 |
MPN
LY3-AC24
