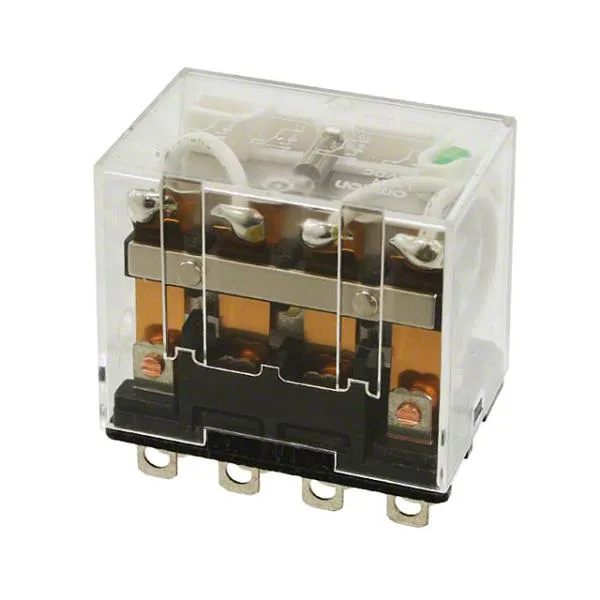

Omron LY4-0-DC24
MPNLY4-0-DC24
OMRON General Purpose Relays: Socket Mounted, 24V DC, 14 Pins/Terminals, 4PDT
$23.90 – $48.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY |
| Parameter | Value |
|---|---|
| Contact form | 4PDT |
| Contact rating (AC) | 7.5 A @ 120V10 A @ 120V |
| Mechanical life (operations) | 50,000,000; 100,000,000 |
| Electrical life (operations) | 200,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity; 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | LED Indicator |
| Push-to-test button | No Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | PCB |
| Number of pins/terminals | 14 |
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Contact rating | 5 A @ 24V10 A @ 24V |
| Horsepower @ 240V AC | 1/2 hp |
| Coil voltage (Nominal@60Hz) | 24V DC |
MPN
LY4-0-DC24
