Omron LY4N-D2-DC24 — General Purpose Relays

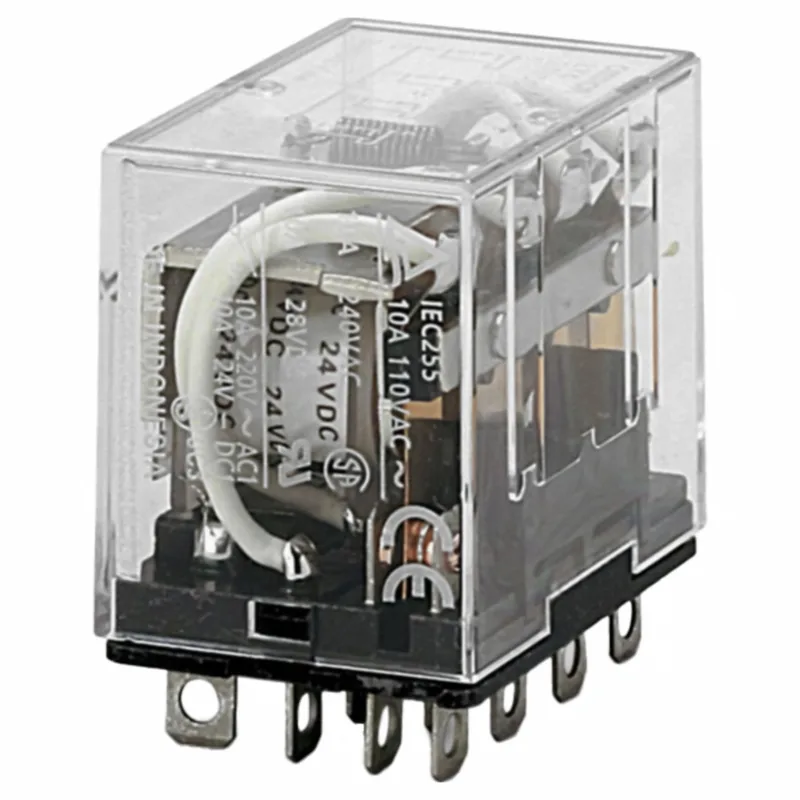

Omron LY4N-D2-DC24 General Purpose Relay, 4PDT, 24V DC Coil

MPNLY4N-D2-DC24

Omron LY Series, General Purpose Relay, Socket Mounted, 4PDT, 24V DC Coil, 10 A @ 120V AC / 10 A @ 24V DC, LED Indicator.

$19.05Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LY4N-D2-DC24 — Identification
ParameterValue
SeriesLY
LY4N-D2-DC24 — Contacts & Switching
ParameterValue
Contact form4PDT
Contact rating (AC)7.5 A @ 120V10 A @ 120V
Mechanical life (operations)50,000,000; 100,000,000
Electrical life (operations)200,000
LY4N-D2-DC24 — Coil & Supply
ParameterValue
Coil voltage24V DC
LY4N-D2-DC24 — Electrical
ParameterValue
Dielectric strength1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity; 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
LY4N-D2-DC24 — Function & Indication
ParameterValue
Status indicatorLED Indicator
Push-to-test buttonNo Test Button
LY4N-D2-DC24 — Mechanical
ParameterValue

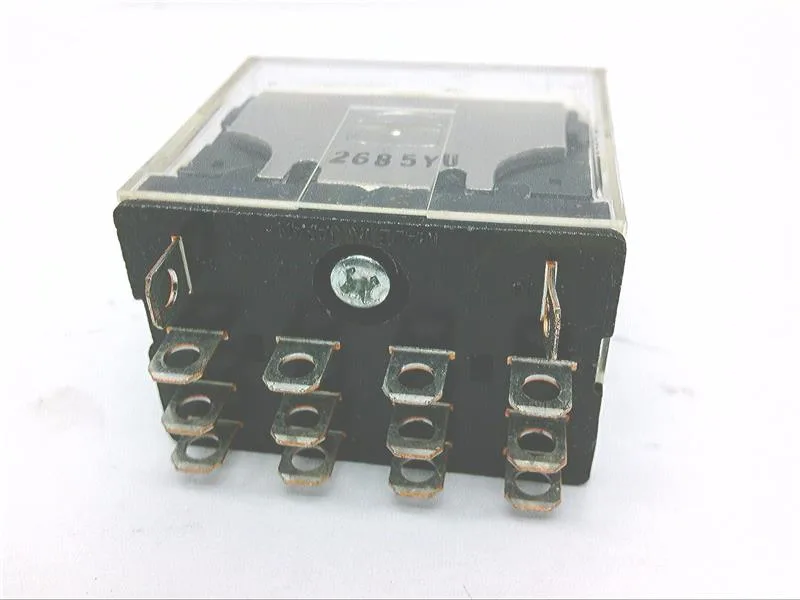

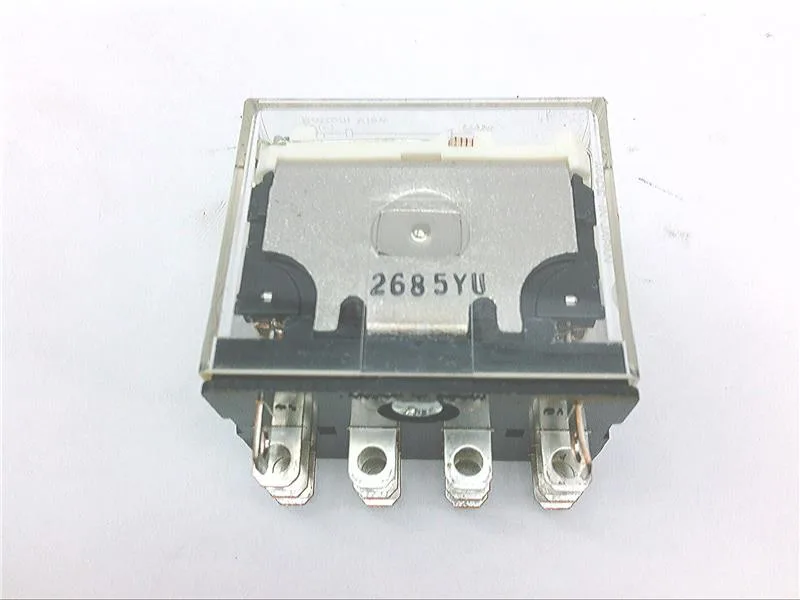

Relay mounting styleSocket
Electrical connection typePin
Number of pins/terminals14
LY4N-D2-DC24 — Other specifications
ParameterValue
Motor ratedYes
Contact rating5 A @ 24V10 A @ 24V
Horsepower @ 240V AC1/2 hp
Coil voltage (Nominal@60Hz)24V DC

Product details

Contact ratings and coil — what fits your load

The Omron LY4N-D2-DC24 is a 4PDT general-purpose relay from the LY series, socket-mounted with 14 pins. Coil pulls in at 24 V DC nominal.

Durability and dielectric — panel-builder notes

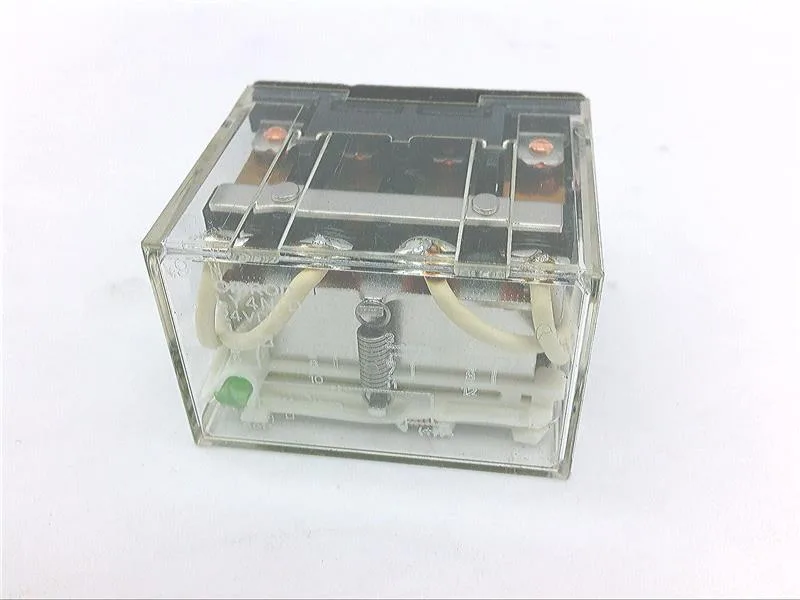

Electrical operating durability is rated 200,000 cycles; mechanical durability hits 50,000,000 to 100,000,000 cycles — the mechanical life far outruns the electrical, so in practice the contact load determines replacement interval. Dielectric strength: 1,000 V AC between same-polarity contacts, 2,000 V AC between coil and contacts or different-polarity contacts — standard for a 24 V DC relay, no special isolation for high-voltage circuits. LED indicator on the coil side gives a quick visual on pickup without needing a meter.

Frequently asked questions

Where can I buy LY4N-D2-DC24 and how do I get a price?

The LY4N-D2-DC24 is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing.

What is the closest functional second-source — MY2ZN-D2 DC24?

The MY2ZN-D2 DC24 is a DPDT relay (half the poles) with lower contact ratings — 5 A at 240 V AC vs 10 A on the LY4N-D2-DC24 — and uses an 8-pin socket. It will not drop into the same 14-pin socket without rewiring and a contact-rating check.

What is LY4N-D2-DC24's listed series?

The LY4N-D2-DC24 belongs to the Omron LY series of general-purpose relays.

What is LY4N-D2-DC24's motor rated value?

The LY4N-D2-DC24 is listed as Motor Rated: Yes, with a horsepower rating of 1/2 hp at 240 V AC.

Will LY4N-D2-DC24 drop into a panel specified around MY2ZN-D2 DC24 without rewiring?

No. The LY4N-D2-DC24 uses a 14-pin socket; the MY2ZN-D2 DC24 uses an 8-pin socket. The contact form also differs — 4PDT vs DPDT — so rewiring and a socket change are required.
