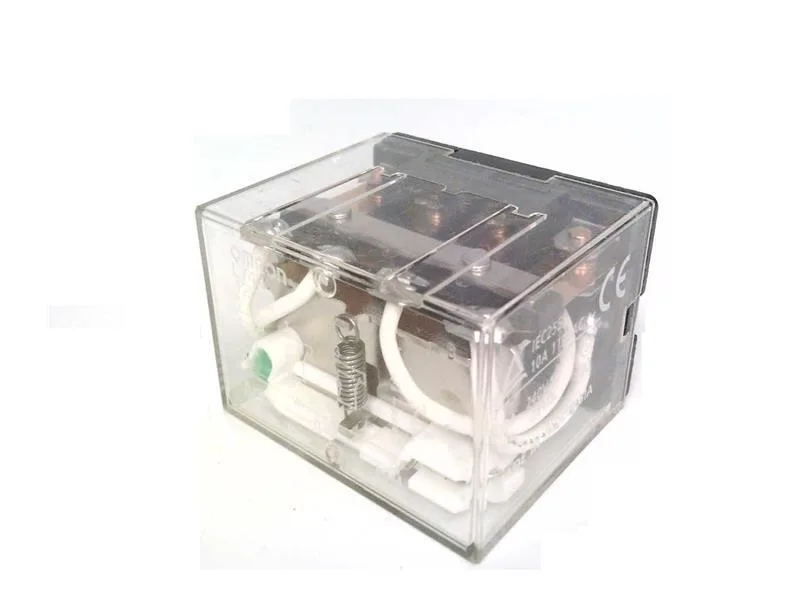

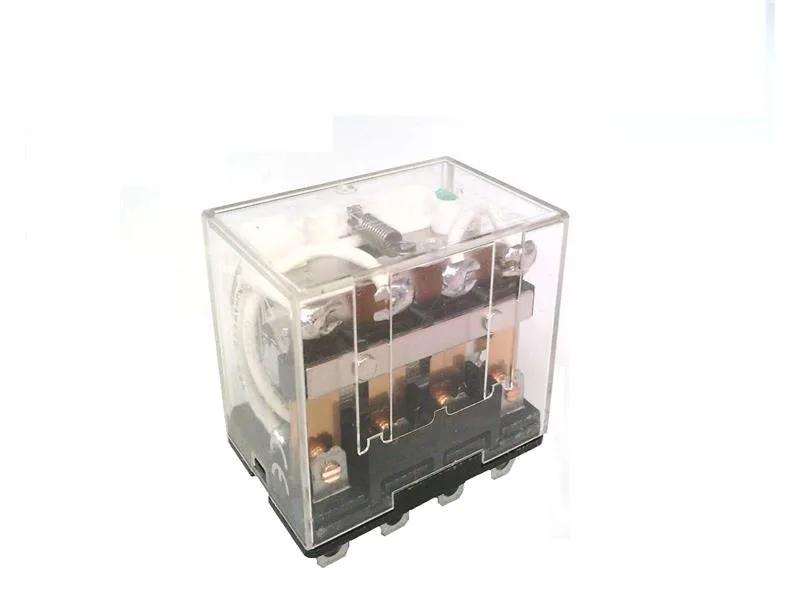

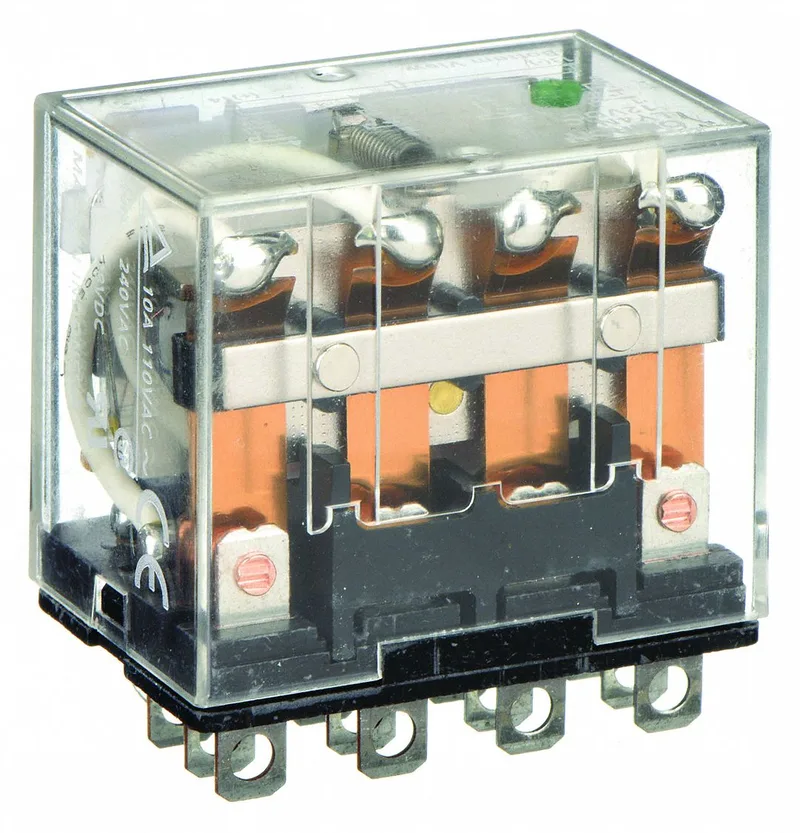

Omron LY4N-DC12
MPNLY4N-DC12
OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, 14 Pins/Terminals, 4PDT
$26.87 – $42.82Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 12 VDC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 to 40°C |
Other specifications
| Parameter | Value |
|---|---|
| Terminal | Plug-in |
| Minimum load | 100 mA @ 5 VDC |
| Power consumption | Approx. 0.53 W |
| Contact arrangement | 4PDT |
| Max. switching current | 10 A |
| Max. switching voltage | 250 VAC, 125 VDC |
| Rated load (inductive) | 7.5 A @ 110 VAC, 5 A @ 24 VDC |
| Rated load (resistive) | 10 A @ 110 VAC, 10 A @ 24 VDC |
| Max. switching power(resistive) | 1,100 VA, 240 W |
| Max. switching power (inductive) | 825 VA, 120 W |
MPN
LY4N-DC12
