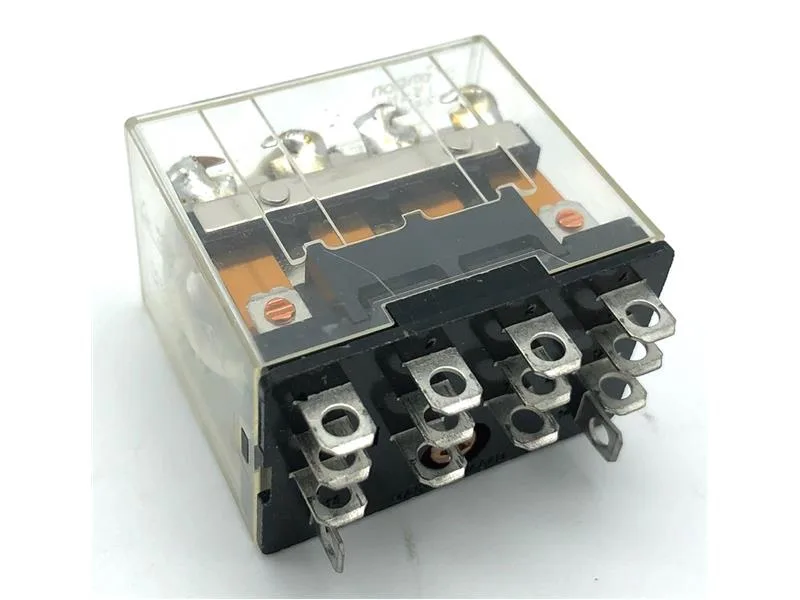

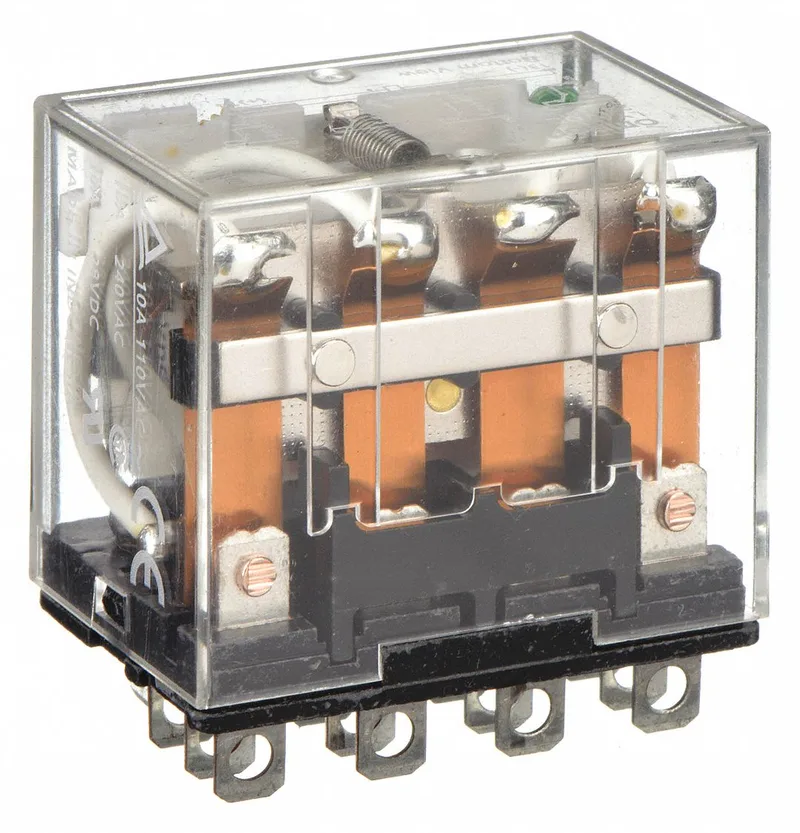

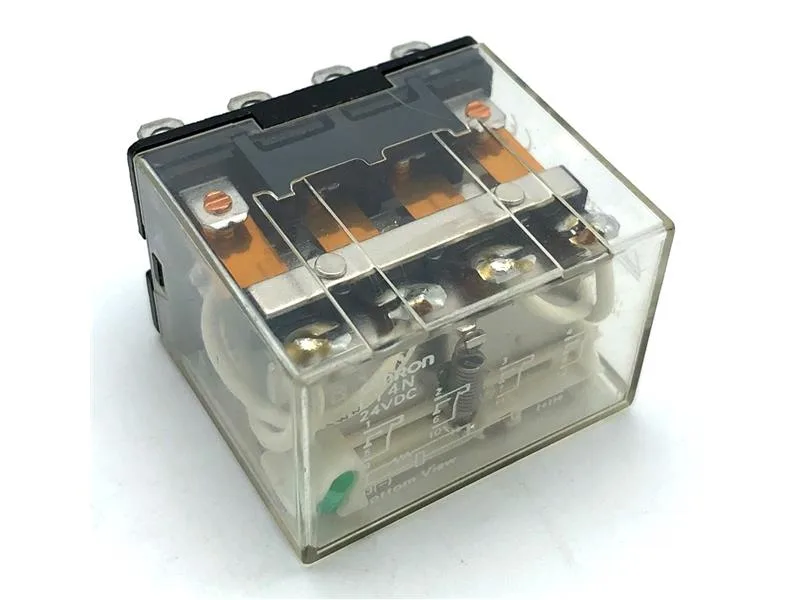

Omron LY4N-DC24
MPNLY4N-DC24
RELAY 4PDT 10A 24VDC|ORN LY4N-DC24 RELAY 4PDT 10A 24VDC
$26.55 – $44.82Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LY Series |
| Electrical connection type | Tab |
| Coil voltage | 24V DC |
| Coil voltage (Nominal@60Hz) | 24V DC |
| Current rating | 10 A |
| Horsepower @ 120V AC | 1/3 hp |
| Horsepower @ 240V AC | 1/2 hp |
| Contact form | 4PDT |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 14 |
| Electrical operating durability | 200,000 |
| Mechanical operating durability | 100,000,000 |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | F |
| Status indicator | LED Indicator |
| Contact rating | 7.5 A @ 120V10 A @ 120V |
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC between Coil and Contacts; 2,000V AC between Contacts of Different Polarity |
| Push-To-Test button | Manual Push Test Button |
MPN
LY4N-DC24
