Omron MJN2CF-AC24
MPNMJN2CF-AC24

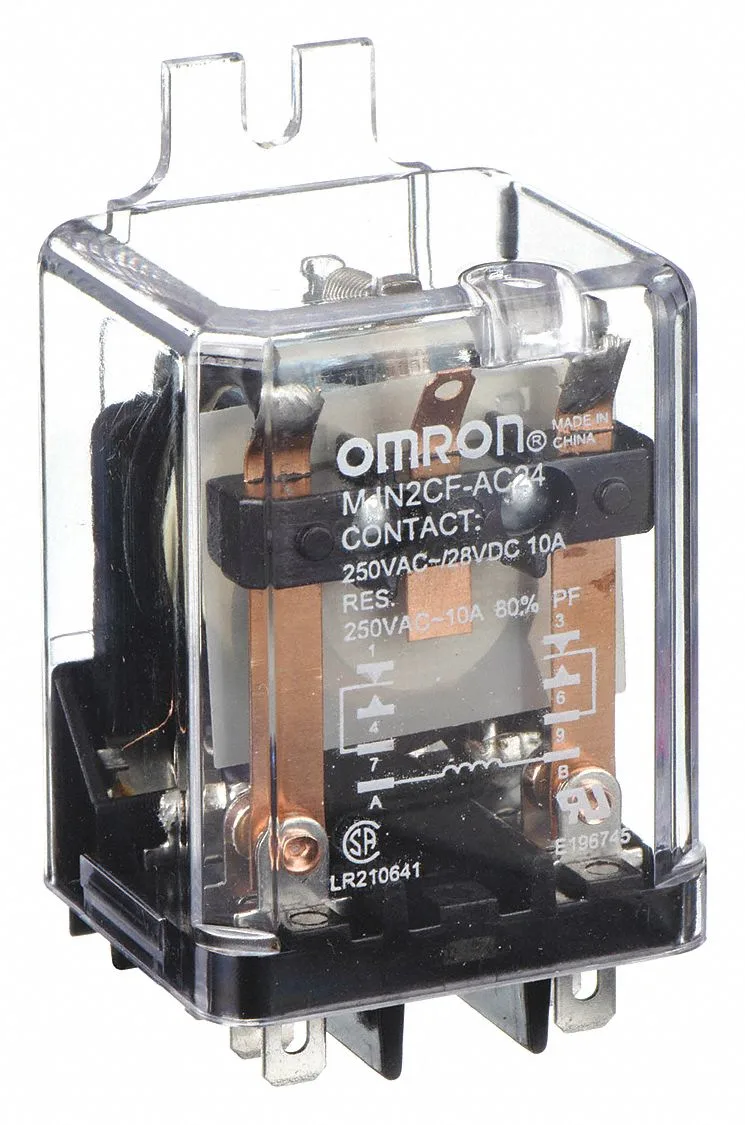

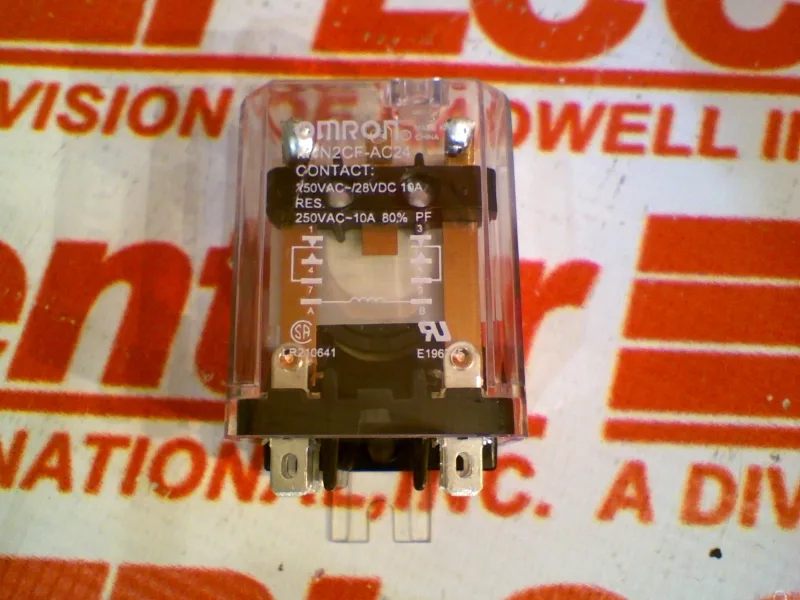

OMRON Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating, 24V AC, DPDT
$24.61 – $37.71Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MJN Series |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 10 A @ 240V10 A @ 277V |
| Mechanical life (operations) | 10,000,000 |
| Electrical life (operations) | 100,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
| Parameter | Value |
|---|---|
| Dielectric strength | 2,500V AC Mutually Insulated Elements; 750V AC Between Open Contact |
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Surface (Side Flange) |
| Electrical connection type | Tab |
| Number of pins/terminals | 8 |
MPN
MJN2CF-AC24
