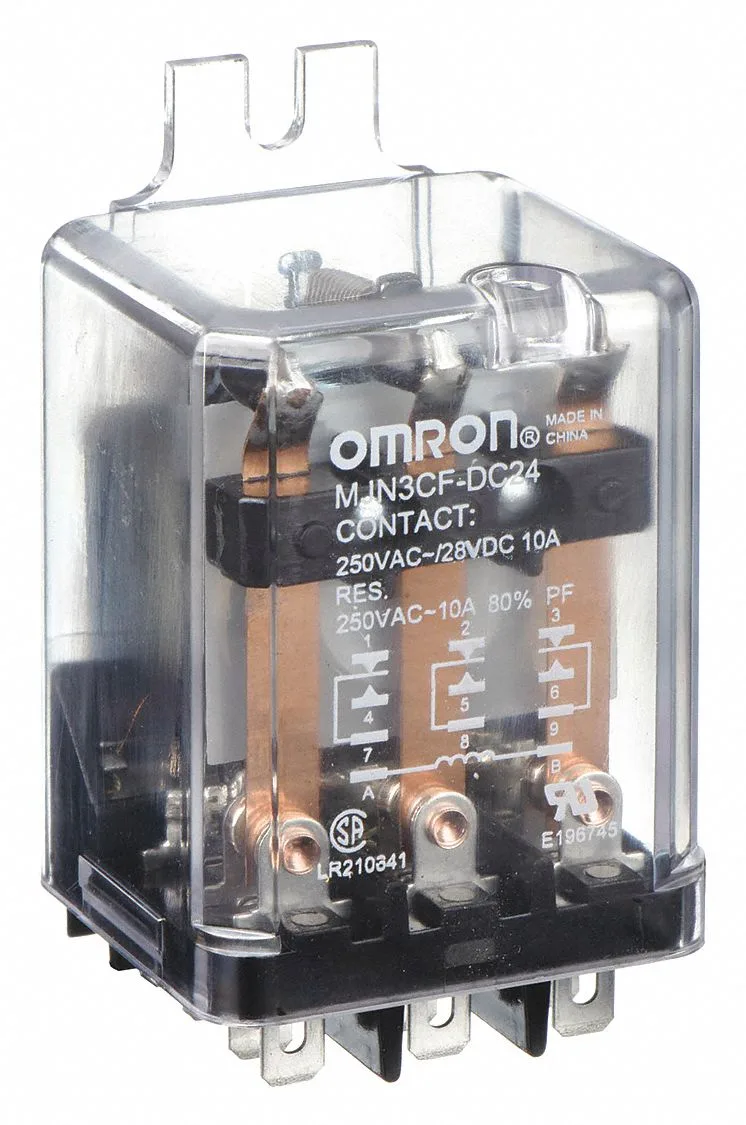

Omron MJN3CF-DC24
MPNMJN3CF-DC24
MJN|Multi Pole 10-30A General Purpose Relay with 600VAC Maximum Switching Voltage
$31.21 – $50.28Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Coil voltage | 24 VDC |
| Max. switching voltage | 600 VAC, 28 VDC |
| Max. switching current | 10 A |
| Power consumption | Approx. 1.2 W |
| Max. switching power(resistive) | 2,770 VA, 280 W |
| Max. switching power (inductive) | 2,400 VA, 1,800 W |
| Terminal | Quick-Connect (#187) |
| Operating temperature | -45 to 70°C |
| Contact arrangement | 3PDT |
| Rated load (inductive) | 10 A @ 240 VAC, 3 A @ 600 VAC |
| Rated load (resistive) | 10 A @ 277 VAC, 10 A @ 28 VDC |
MPN
MJN3CF-DC24
