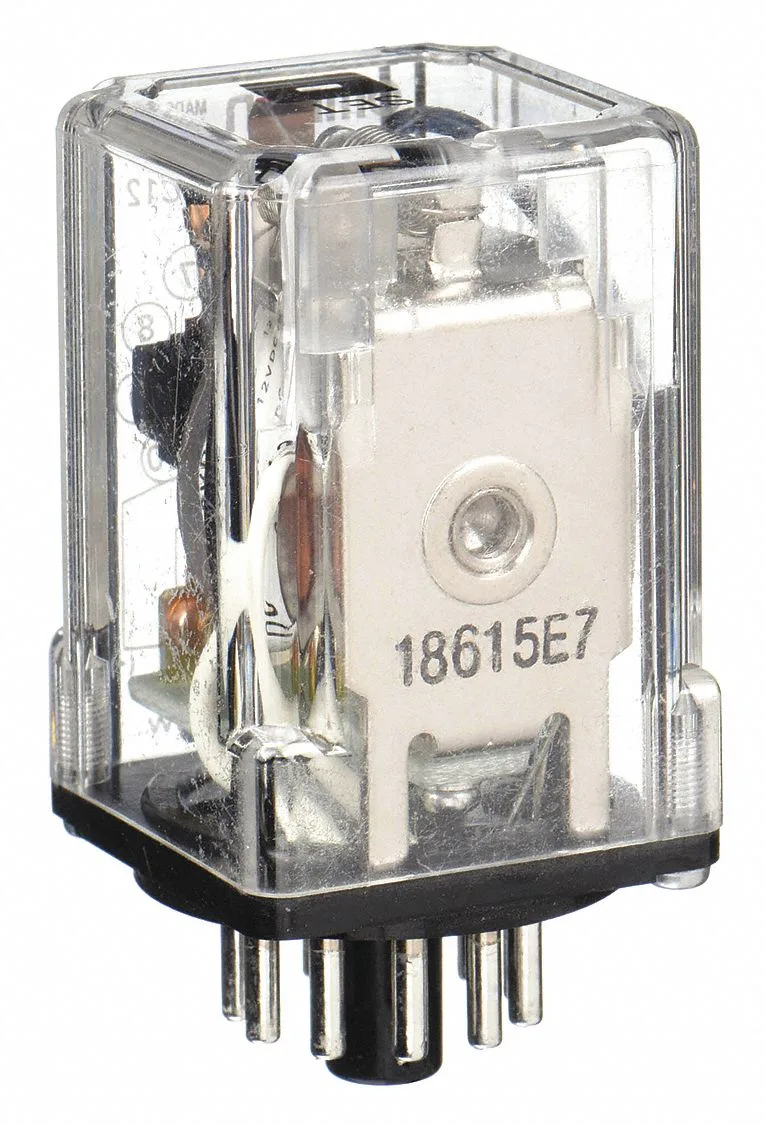

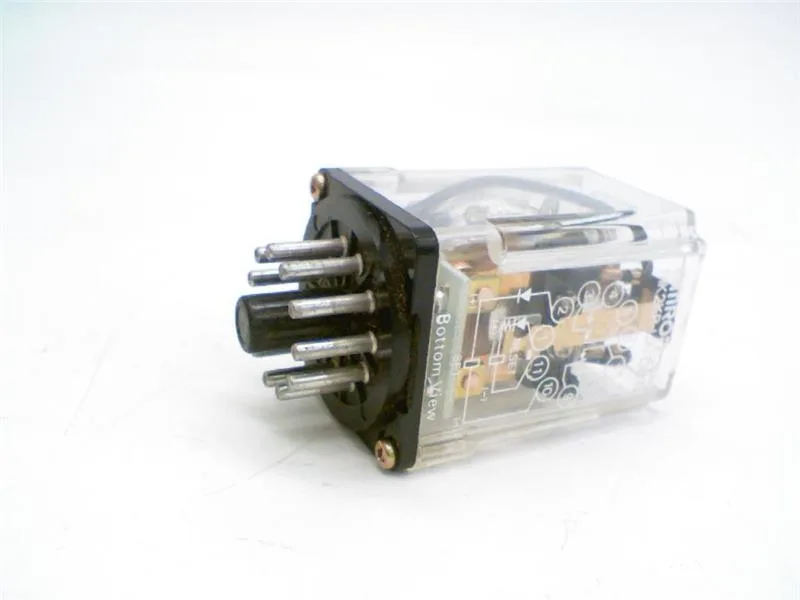

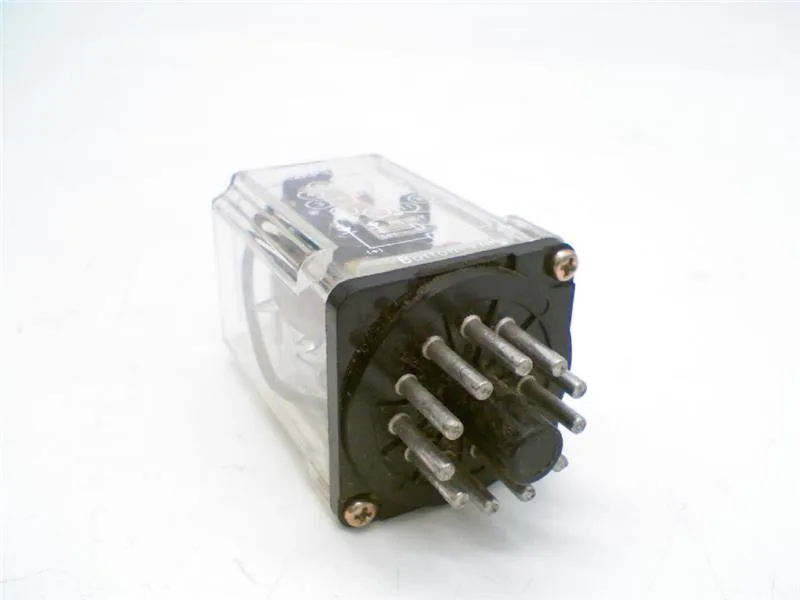

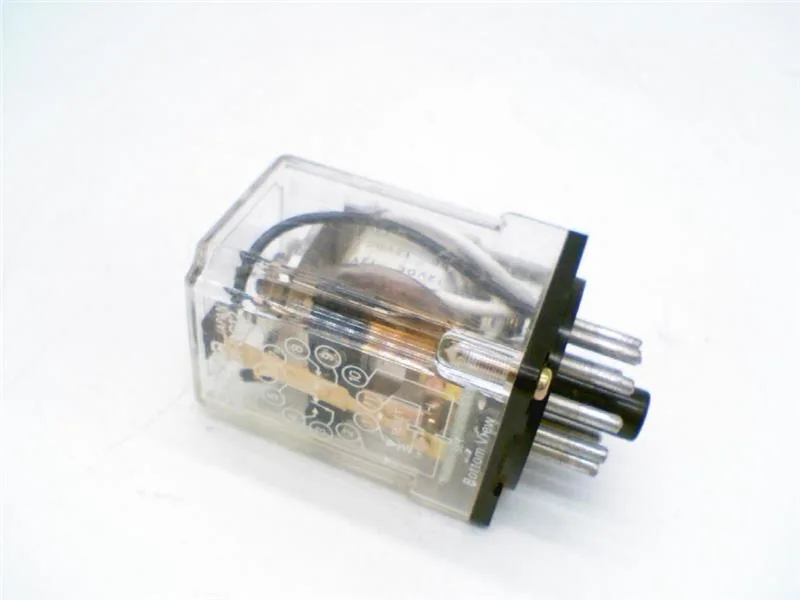

Omron MK2KP-UA-DC12
MPNMK2KP-UA-DC12
OMRON Latching Relay: Socket Mounted, 5 A Current Rating, 12V DC, 11 Pins/Terminals, DPDT, B Socket
$149.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MK Series |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 2 A @ 240V5 A @ 240V |
| Mechanical life (operations) | 5,000,000 |
| Electrical life (operations) | 500,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 12V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 1,000V AC Between Set/Reset Coils; 2,000V AC Between Coil and Contact; 2,000V AC Between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | Mechanical Flag |
| Push-to-test button | Manual Push Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Tab |
| Number of pins/terminals | 11 |
MPN
MK2KP-UA-DC12
