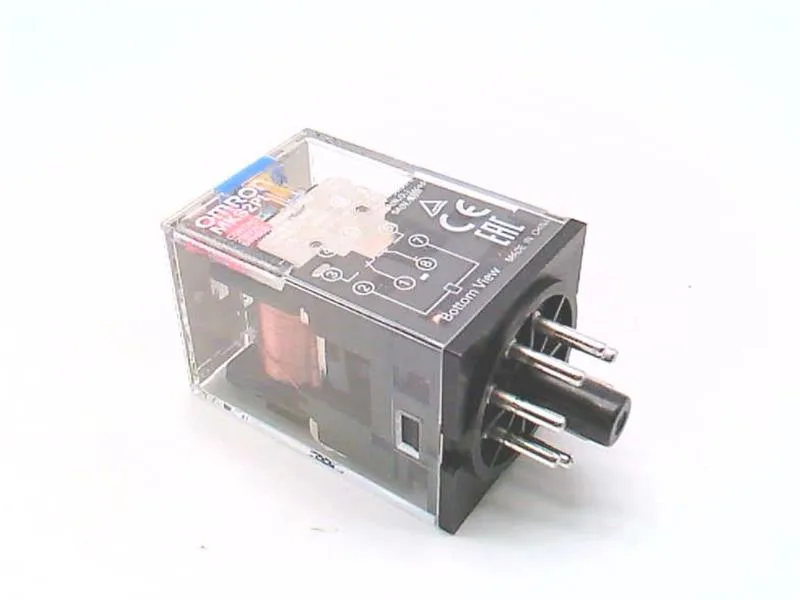

Omron MKS2PIDC24
MPNMKS2PIDC24
OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 8 Pins/Terminals, DPDT
$10.46 – $16.16Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MK-S Series |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 5 A @ 250V (NC)7 A @ 250V (NO)10 A @ 250V (NO) |
| Mechanical life (operations) | 5,000,000 |
| Electrical life (operations) | 100,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity; 2,500V AC between Coil and Contacts; 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity |
| Parameter | Value |
|---|---|
| Status indicator | Mechanical Flag |
| Push-to-test button | Lockable Push Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Pin |
| Number of pins/terminals | 8 |
MPN
MKS2PIDC24
