Omron MKS3PI5AC24 — General Purpose Relays

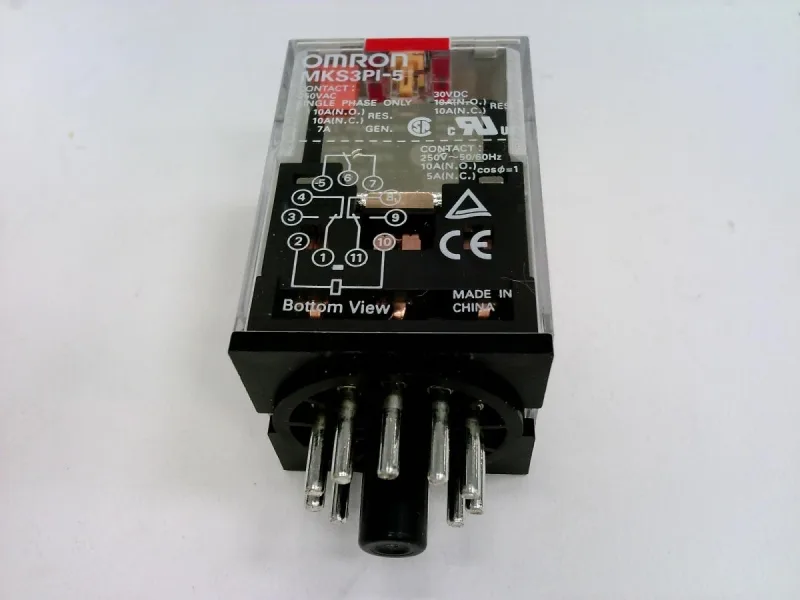

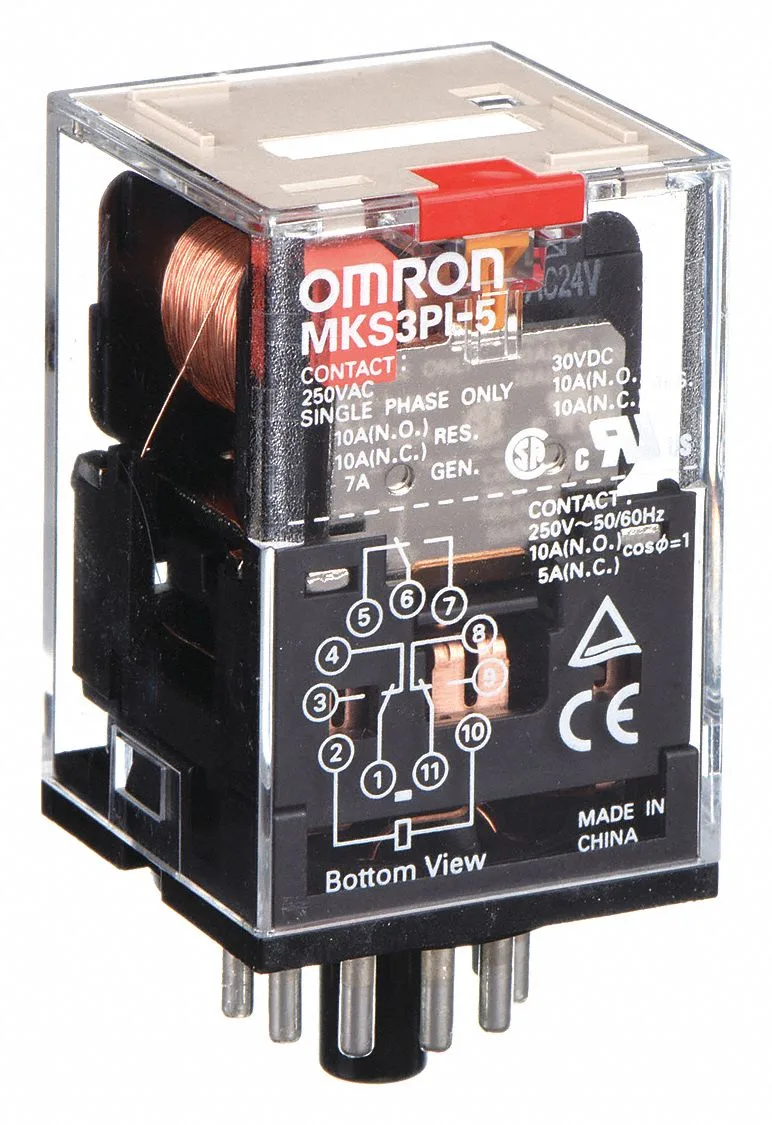

Omron MKS3PI5AC24

MPNMKS3PI5AC24

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, 11 Pins/Terminals, 3PDT

$9.49 – $19.28Ref. price · indicative, final on quote
Omron MKS3PI5AC24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

MKS3PI5AC24 — Identification
ParameterValue
SeriesMK-S Series
MKS3PI5AC24 — Contacts & Switching
ParameterValue
Contact form3PDT
Contact rating (AC)5 A @ 250V (NC)7 A @ 250V (NO)10 A @ 250V (NO)
Mechanical life (operations)5,000,000
Electrical life (operations)100,000
MKS3PI5AC24 — Coil & Supply
ParameterValue
Coil voltage24V AC
MKS3PI5AC24 — Electrical
ParameterValue
Dielectric strength1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity; 2,500V AC between Coil and Contacts; 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity
MKS3PI5AC24 — Function & Indication
ParameterValue
Status indicatorMechanical Flag
Push-to-test buttonLockable Push Test Button
MKS3PI5AC24 — Mechanical
ParameterValue
Relay mounting styleSocket
Electrical connection typePin
Number of pins/terminals11
MPN
MKS3PI5AC24
