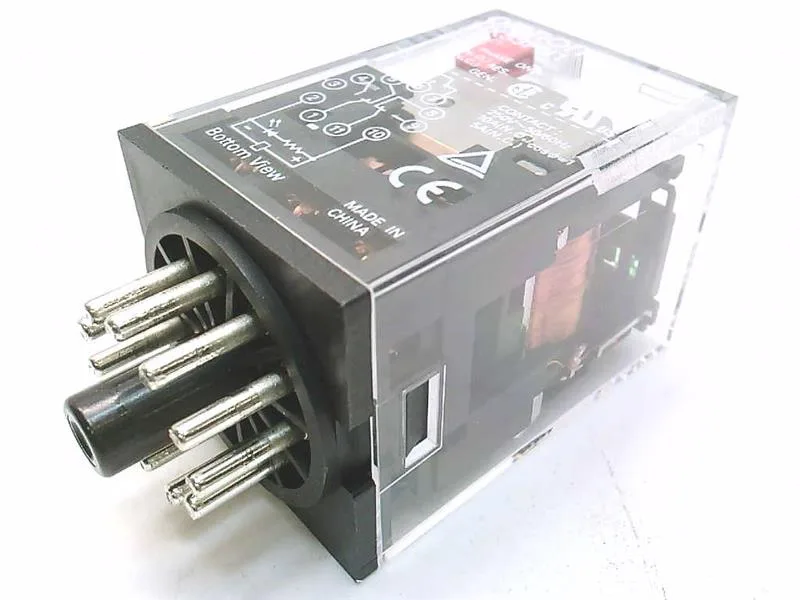

Omron MKS3PN1 DC24
MPNMKS3PN1 DC24
MK-S|Exceptionally reliable general-purpose relay
$8.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Coil voltage | 24 VDC |
| Max. switching voltage | 250 VAC, 250 VDC |
| Max. switching current | 10 A |
| Power consumption | Approx. 1.4 W |
| Max. switching power(resistive) | NO: 2,500 VA, 300 W NC: 1,250 VA, 150 W |
| Max. switching power (inductive) | 1,750 VA |
| Terminal | Plug-in |
| Operating temperature | -25 to 60°C |
| RoHS compliant | Yes |
| Indicator | LED, Mechanical |
| Minimum load | 10 mA @ 1 VDC |
| Contact arrangement | 3PDT |
| Rated load (inductive) | 7 A @ 250 VAC |
| Rated load (resistive) | NO : 10 A @ 250 VAC, 10 A @ 30 VDC NC: 5 A @ 250 VAC, 5 A @ 30 VDC |
MPN
MKS3PN1 DC24
