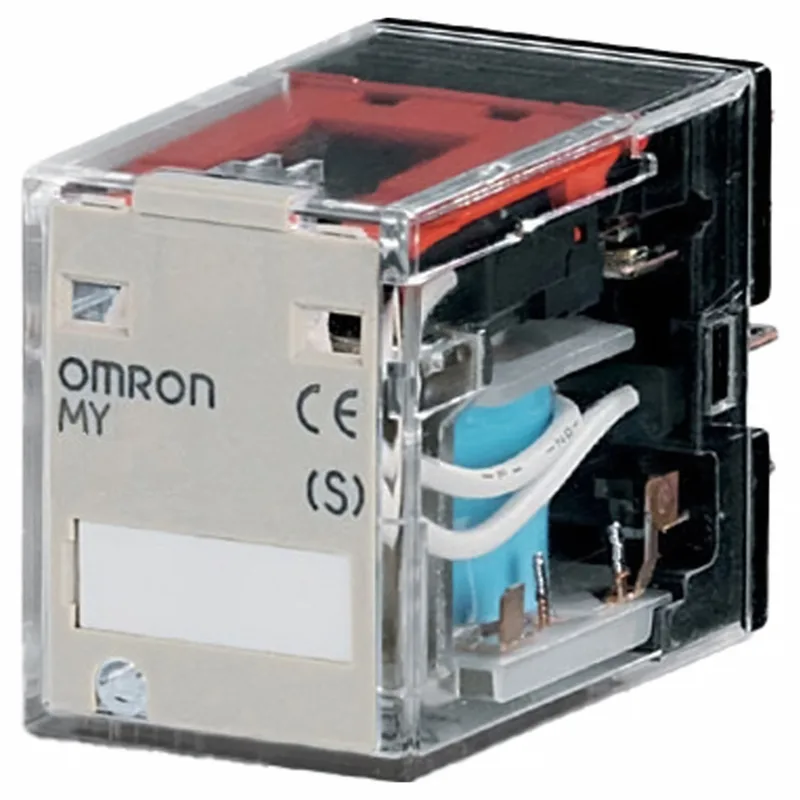

Omron MY2-02-DC24
MPNMY2-02-DC24
OMRON General Purpose Relay: PCB Mounted, 24V DC, 14 Pins/Terminals, DPDT
$17.41 – $28.95Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | MY Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 2 A @ 240V5 A @ 240V |
| Mechanical life (operations) | 50,000,000; 100,000,000 |
| Electrical life (operations) | 500,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity; 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | LED Indicator |
| Push-to-test button | Lockable Push Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | PCB |
| Electrical connection type | PCB |
| Number of pins/terminals | 14 |
Other specifications
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Contact rating | 2 A @ 24V5 A @ 24V |
| Horsepower @ 120V AC | 1/10 hp |
| Horsepower @ 240V AC | 1/6 hp |
MPN
MY2-02-DC24
