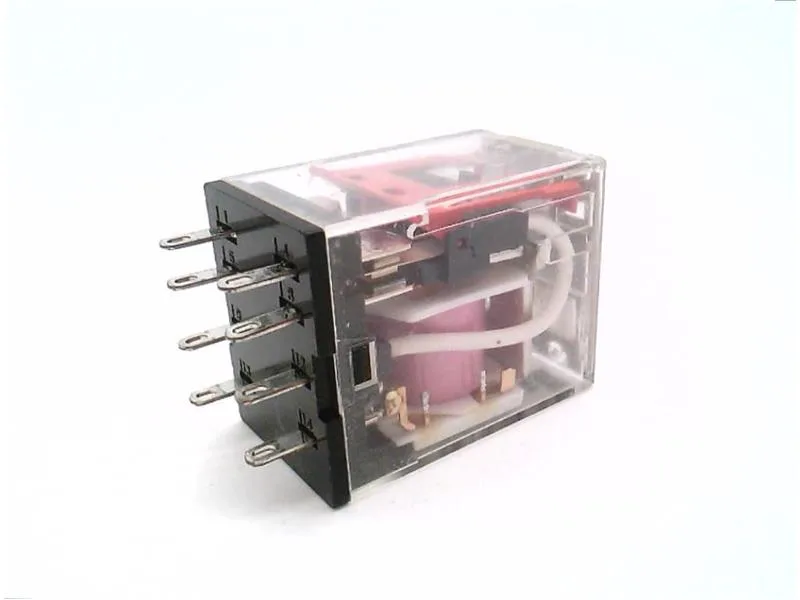

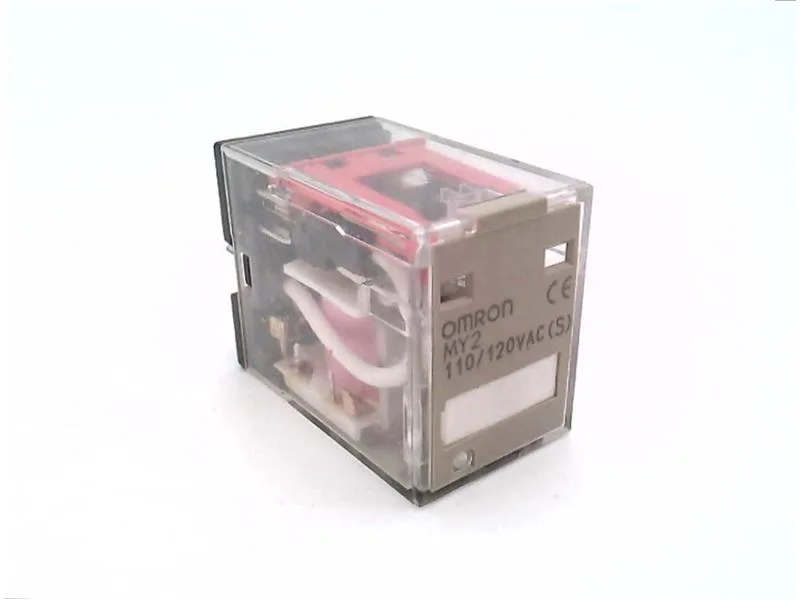

Omron MY2AC110120S
MPNMY2AC110120S
RELAY DPDT 110/120VAC 50/60HZ COIL 10A 250VAC|RELAY DPDT 110/120VAC 50/60HZ COIL 10A 250VAC
$9.84 – $13.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MY Series |
| Electrical connection type | Pin |
| Coil voltage | 120V AC |
| Coil voltage (Nominal@60Hz) | 120V AC |
| Current rating | 10 A |
| Horsepower @ 120V AC | 1/6 hp |
| Horsepower @ 240V AC | 1/6 hp |
| Contact form | DPDT |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 8 |
| Electrical operating durability | 500,000 |
| Mechanical operating durability | 500,000,000 |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | K |
| Status indicator | No Indicator |
| Contact rating | 2 A @ 240V5 A @ 240V |
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 2,000V AC Between Coil and Contact; 2,000V AC Between Contacts of Different Polarity |
| Push-To-Test button | Manual Push Test Button |
MPN
MY2AC110120S
