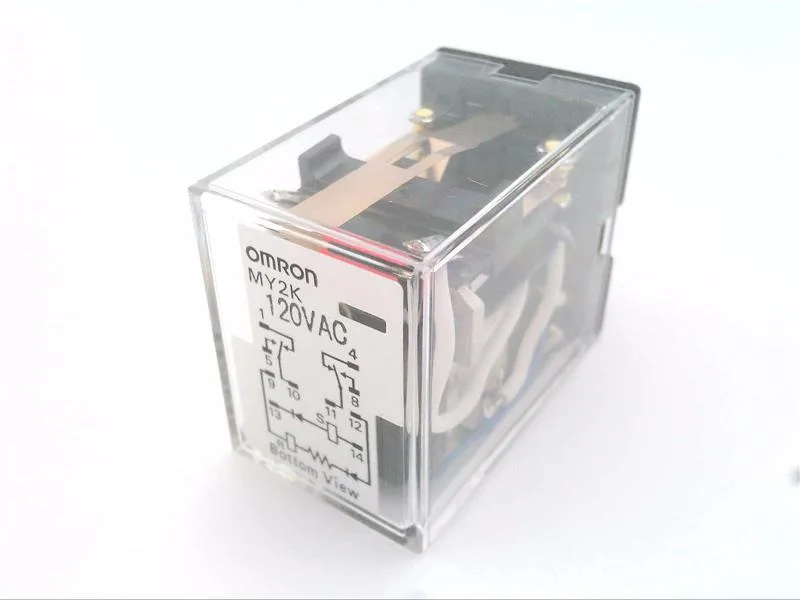

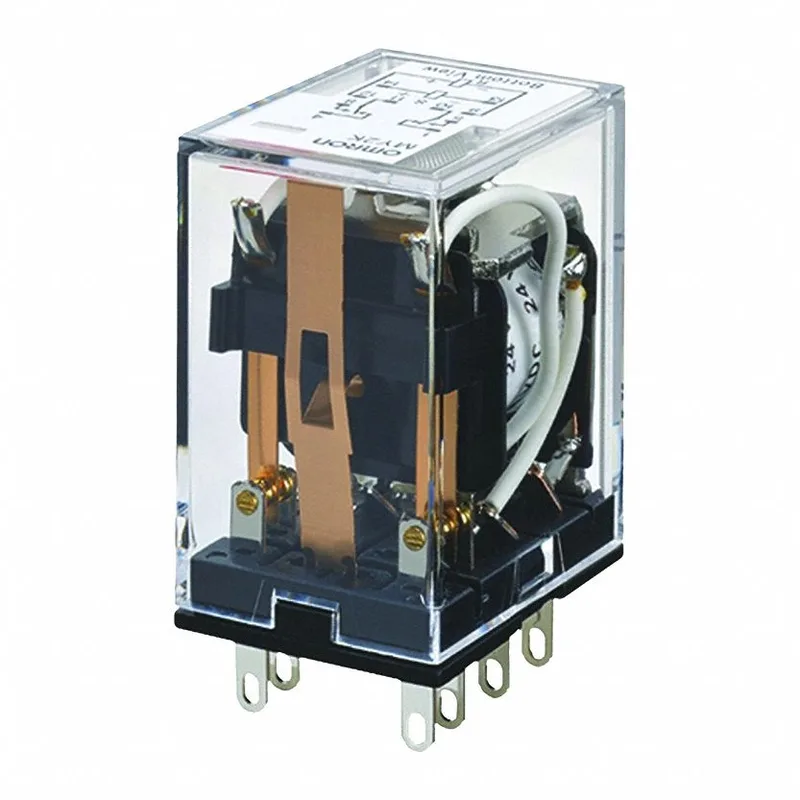

Omron MY2K AC120 — General Purpose Relays

Omron MY2K AC120

MPNMY2K AC120

OMRON General Purpose Latching Relay: Socket Mounted, 3 A Current Rating, 120V AC, 10 Pins/Terminals

$152.39 – $261.52Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MY2K AC120 — Identification
ParameterValue
SeriesMY Series
MY2K AC120 — Contacts & Switching
ParameterValue
Contact formDPDT
Contact rating (AC)0.8 A @ 220V3 A @ 220V
Mechanical life (operations)100,000,000
Electrical life (operations)200,000
MY2K AC120 — Coil & Supply
ParameterValue
Coil voltage120V AC
MY2K AC120 — Electrical
ParameterValue
Dielectric strength1,000V AC Between Contacts of Same Polarity; 1,000V AC between Set Coil and Reset Coils; 1,500V AC between Coil and Contacts; 1,500V AC between Contacts of Different Polarity
MY2K AC120 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonNo Test Button
MY2K AC120 — Mechanical
ParameterValue
Relay mounting styleSocket
Electrical connection typePin
Number of pins/terminals10
MY2K AC120 — Other specifications
ParameterValue
SealingHermetically Sealed
Socket codeG
Current rating3 A
Contact rating1.5 A @ 24V3 A @ 24V
Coil voltage (Nominal@60Hz)120V AC
MPN
MY2K AC120
