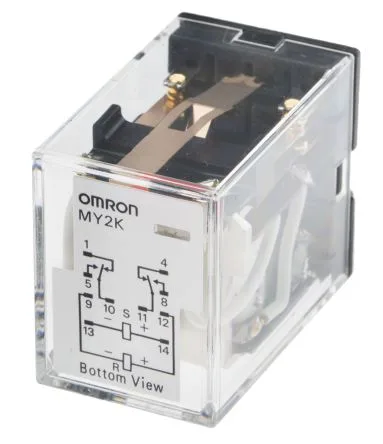

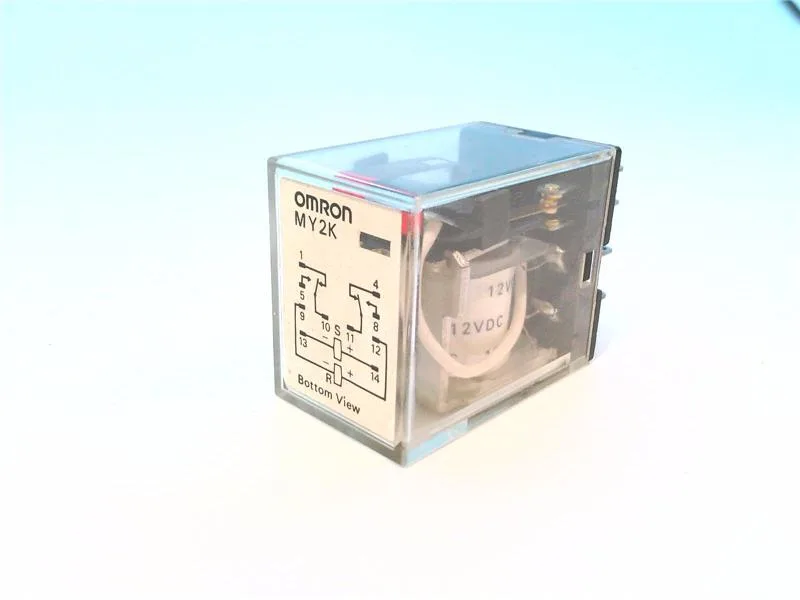

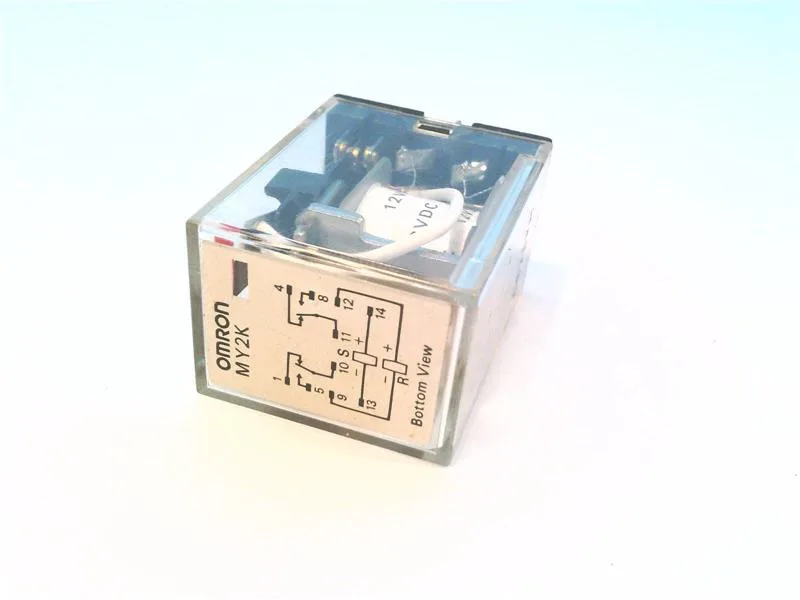

Omron MY2K DC12
MPNMY2K DC12
OMRON General Purpose Latching Relay: Socket Mounted, 3 A Current Rating, 12V DC, 10 Pins/Terminals
$48.73 – $77.13Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MY Series |
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 0.8 A @ 220V3 A @ 220V |
| Mechanical life (operations) | 100,000,000 |
| Electrical life (operations) | 200,000 |
| Parameter | Value |
|---|---|
| Coil voltage | 12V DC |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 1,000V AC between Set Coil and Reset Coils; 1,500V AC between Coil and Contacts; 1,500V AC between Contacts of Different Polarity |
| Parameter | Value |
|---|---|
| Status indicator | Mechanical Flag |
| Push-to-test button | No Test Button |
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Pin |
| Number of pins/terminals | 10 |
| Parameter | Value |
|---|---|
| Sealing | Enclosed |
| Socket code | G |
| Current rating | 3 A |
| Contact rating | 1.5 A @ 24V3 A @ 24V |
| Coil voltage (Nominal@60Hz) | 12V DC |
MPN
MY2K DC12
