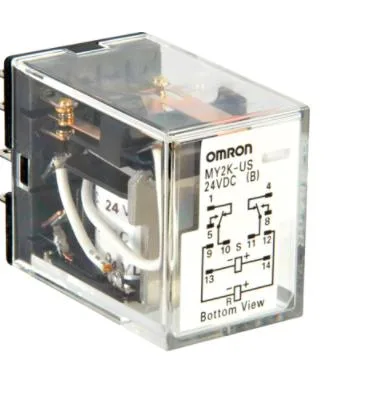

Omron MY2K-US-AC24 — General Purpose Relays

Omron MY2K-US-AC24

MPNMY2K-US-AC24

OMRON General Purpose Latching Relay: Socket Mounted, 3 A Current Rating, 24V AC, 8 Pins/Terminals

$48.26Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MY2K-US-AC24 — Identification
ParameterValue
SeriesMY Series
MY2K-US-AC24 — Contacts & Switching
ParameterValue
Contact formDPDT
Contact rating (AC)0.8 A @ 220V3 A @ 220V
Mechanical life (operations)100,000,000
Electrical life (operations)200,000
MY2K-US-AC24 — Coil & Supply
ParameterValue
Coil voltage24V AC
MY2K-US-AC24 — Electrical
ParameterValue
Dielectric strength1,000V AC Between Contacts of Same Polarity; 1,000V AC between Set Coil and Reset Coils; 1,500V AC between Coil and Contacts; 1,500V AC between Contacts of Different Polarity
MY2K-US-AC24 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonNo Test Button
MY2K-US-AC24 — Mechanical
ParameterValue
Relay mounting styleSocket
Electrical connection typePin
Number of pins/terminals8
MY2K-US-AC24 — Other specifications
ParameterValue
SealingHermetically Sealed
Socket codeK
Current rating3 A
Contact rating1.5 A @ 24V3 A @ 24V
Coil voltage (Nominal@60Hz)24V AC
MPN
MY2K-US-AC24
