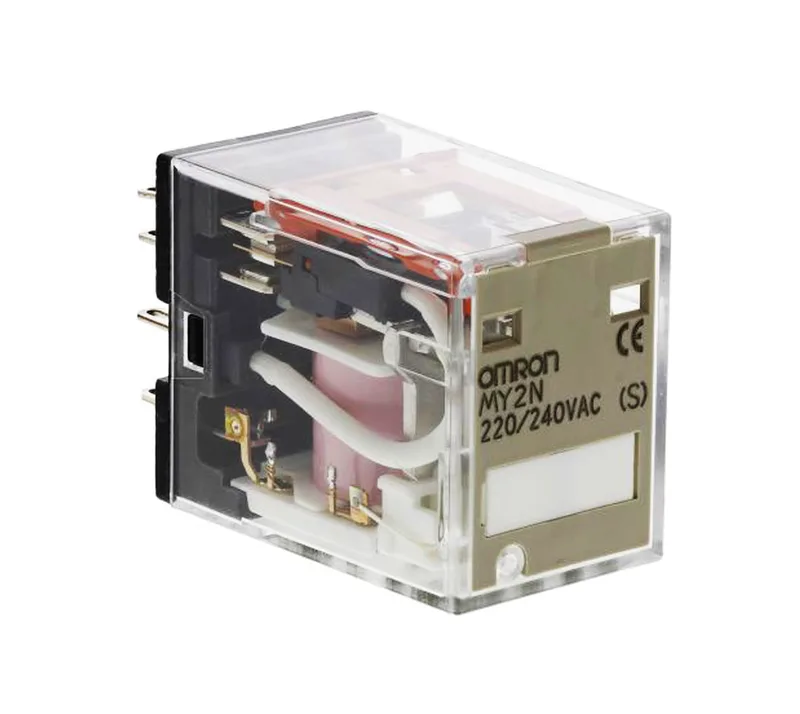

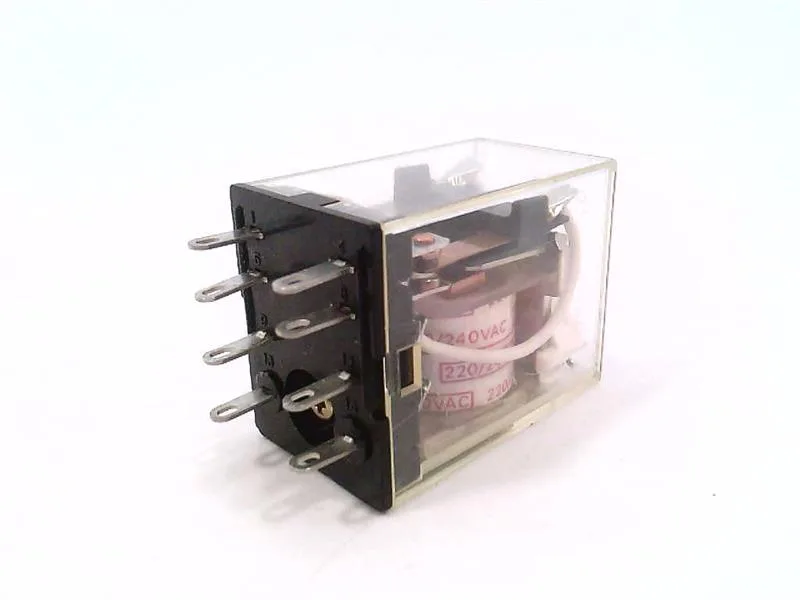

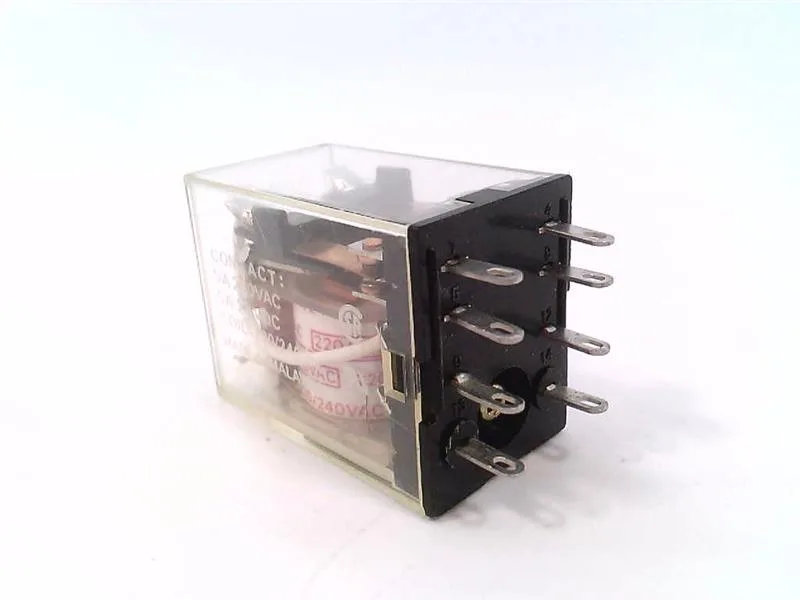

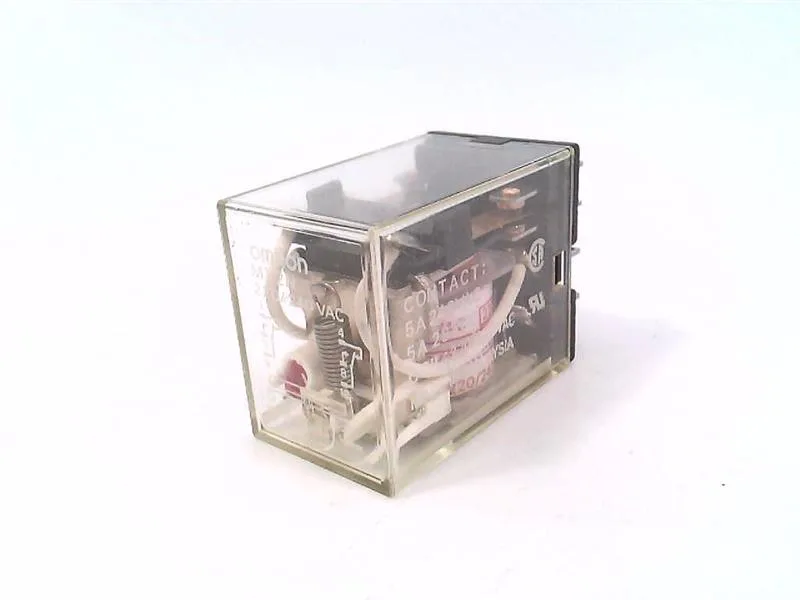

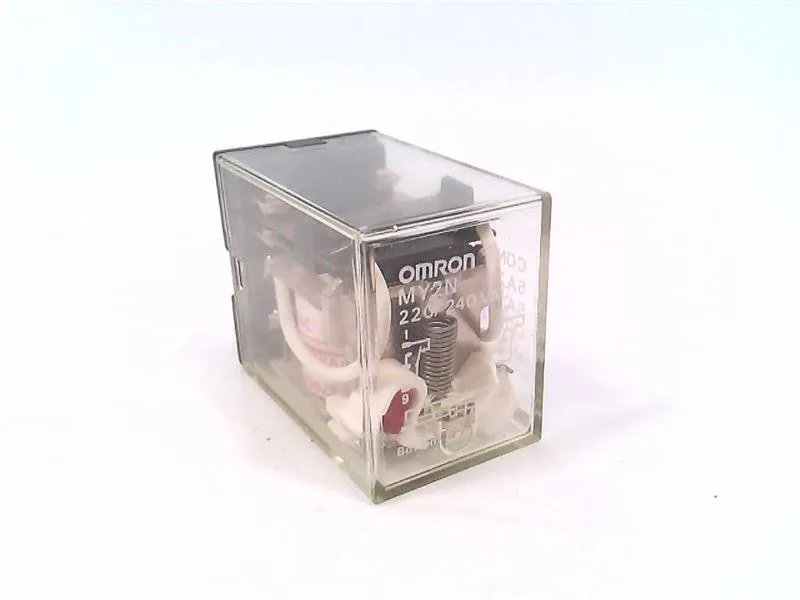

Omron MY2N AC220/240
MPNMY2N AC220/240
Relay * SAME DAY DELIVERY - 25 UNIT ONLY*
$2.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Socket |
| Terminal_structure | Plug-in terminal |
| Shock | 1000 m/s2 |
| Humidity max | 5 to 85% RH |
| Contact_material | Ag |
| IP rating | Closed type (cover) |
| Dielectric | 2000 VAC 50/60 Hz 1 min |
| Mechanical | 18000 time/h |
| Rated_load | 1800 time/h |
| Coil_ratings | 220 VAC 50 Hz 4.8 mA220 VAC 60 Hz 4.2 mA240 VAC 50 Hz 5.3 mA240 VAC 60 Hz 4.6 mA |
| Contact form | DPDT |
| Frequency | 120 operations per minute) |
All specifications+13 ▾
| Parameter | Value |
|---|---|
| Reset time | 20 |
| Contact_method | Single |
| Resistance | 50000000 |
| Supply voltage | 80 |
| Operating time | 20 |
| Coil resistance | 18790 |
| Operating_indicator | LED |
| Power consumption | Approx. 0.9 to 1.3 VA 60 Hz |
| Switching current | 5 |
| Endurance_mechanical | 50 million operations min. (switching frequency 18,000 operations/h) |
| Contact_contact_rated_load | 220 VAC 5 A (Resistive load)220 VAC 2 A (Inductive load (cosφ = 0.4))24 VDC 5 A (Resistive load)24 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Between_contacts_of_same_polarity | 1000 VAC 50/60 Hz 1 min |
| Between_contacts_of_different_polarity | 2000 VAC 50/60 Hz 1 min |
MPN
MY2N AC220/240
