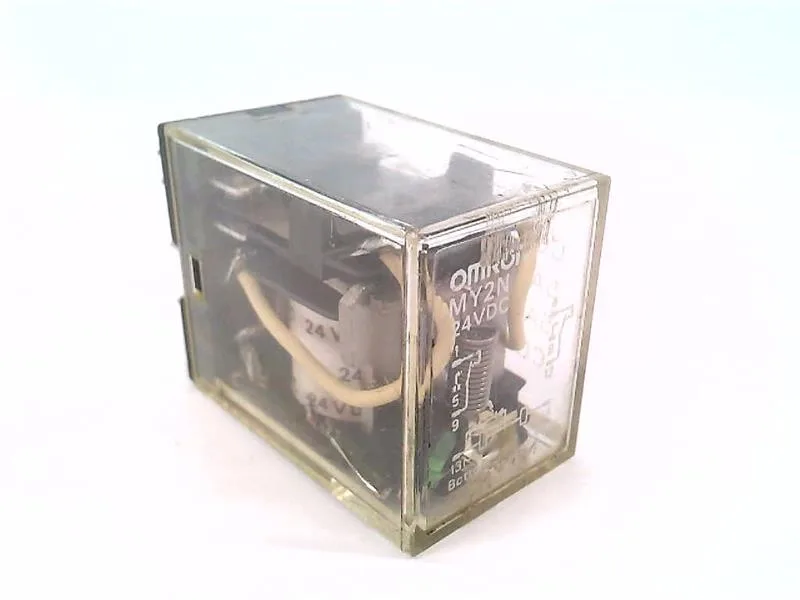

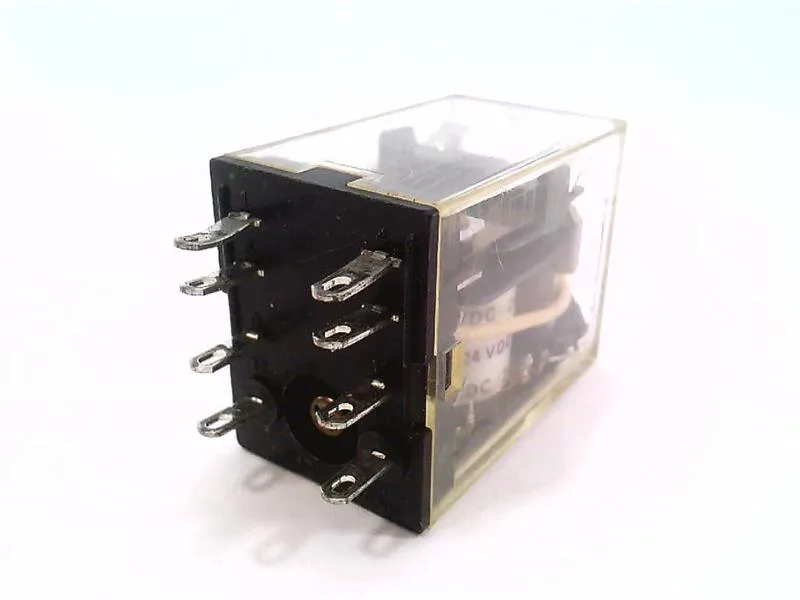

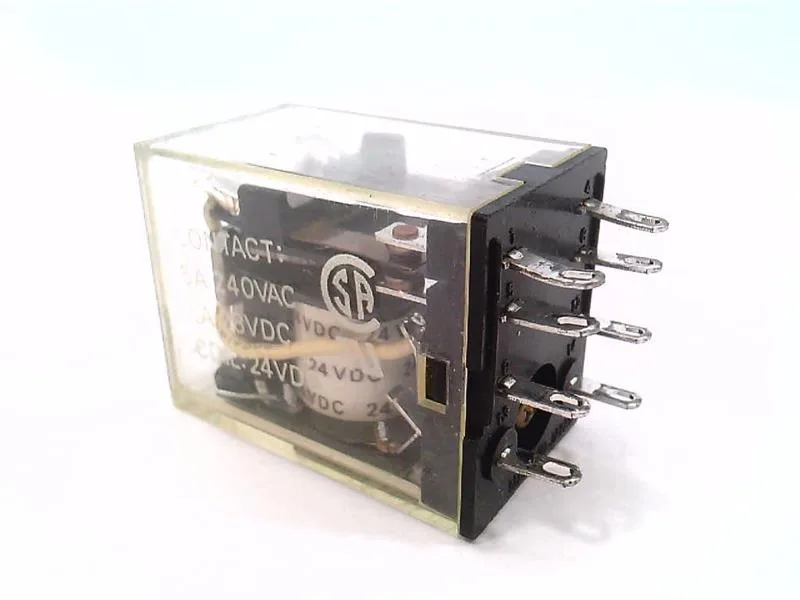

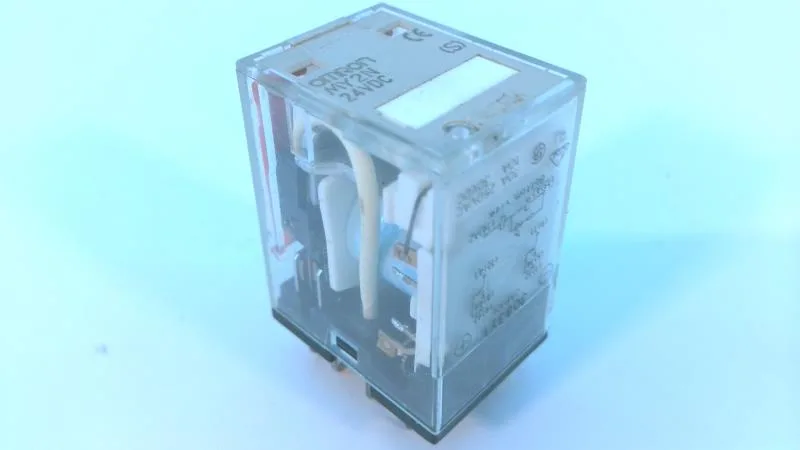

Omron MY2N DC24
MPNMY2N DC24
Relay * SAME DAY DELIVERY - 6 UNIT ONLY*
$7.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Release time | 20 ms max. |
| Operating time | 20 ms max. |
| Contact resistance | 50 mO max. |
| Insulation resistance | 100 MO min. |
| Dimensions (HxWxD), approx | 2.15 cm X 3.6cm X 2.8cm |
| Maximum operating frequency (Rated load) | 1,800 operations/h |
| Maximum operating frequency (mechanical) | 18,000 operations/h |
| Dielectric strength (Between coil and contacts) | 2,000 VAC at 50/60 Hz for 1 min. |
| Dielectric strength (Between contacts of the same polarity) | 1,000 VAC at 50/60 Hz for 1 min. |
| Dielectric strength (Between contacts of different polarity) | 2,000 VAC at 50/60 Hz for 1 min. |
MPN
MY2N DC24
