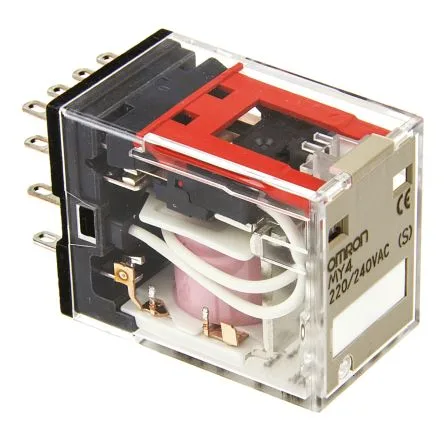

Omron MY4 AC220/240
MPNMY4 AC220/240
Standard type/Single stable, Single, Plug-in terminal, Not equipped, 24 VDC 3 A, 220 VAC 3 A, Output 4PDT (24 VDC 3 A) * SAME DAY DELIVERY - 3 UNIT ONLY*
$8.00 – $11.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Contact form | 4PDTContact method : SingleContact material : Au clad + Ag alloy |
| Parameter | Value |
|---|---|
| Weight | Approx. 35 g |
| Failure rate | 1 VDC 1 mA (failure level: Preference value, SwitchingFrequency: 120 operations per minute) |
| Coil resistance | 18790 OOperate voltage (Set voltage) : 80% max.Release voltage (Reset voltage) : 30% min.Maximum voltage : 110% (23 ?)Power consumption : Approx. 0.9 to 1.3 VA 60 Hz |
| Mounting method | Socket |
| Endurance (Electrical) | 200,000 operations min. (23 ?, Rated load, switching frequency 1,800 operations/h) |
| Endurance (Mechanical) | 50 million operations min. (switching frequency 18,000 operations/h) |
| Ambient humidity (Operating) | 5 to 85% RH |
| Shock resistance (Malfunction) | 200 m/s2 |
| Shock resistance (destruction) | 1000 m/s2 |
| Ambient temperature (Operating) | -55 to 70 ? (with no freezing or condensation) |
| Vibration resistance (Malfunction) | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) |
| Vibration resistance (destruction) | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) |
MPN
MY4 AC220/240
