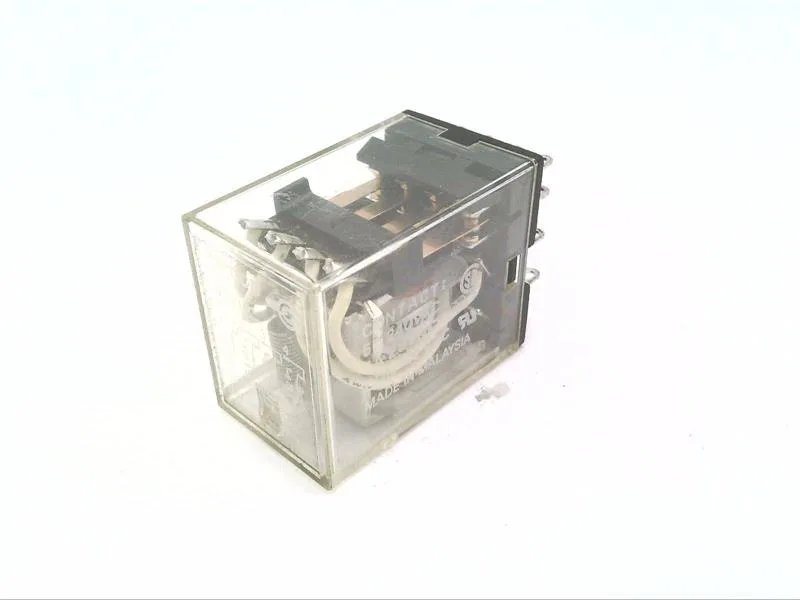

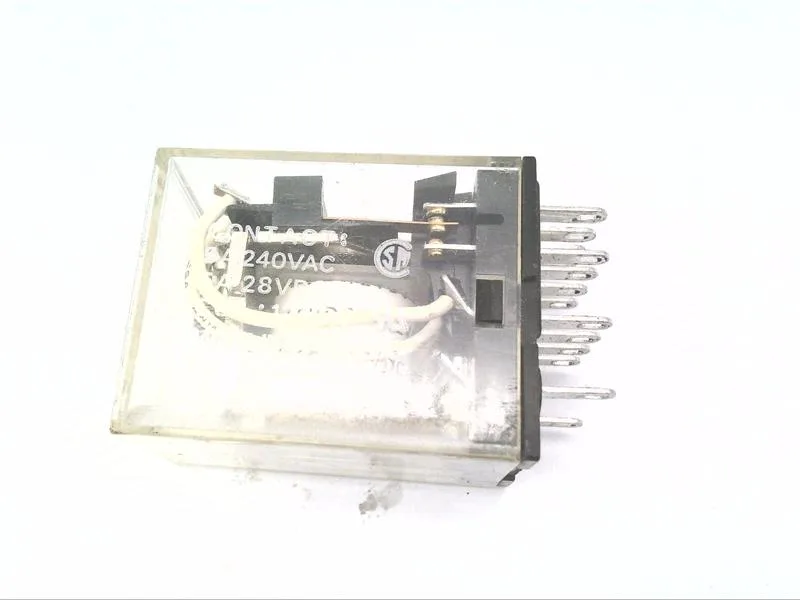

Omron MY4 DC12
MPNMY4 DC12
Miniature Power Relays * SAME DAY DELIVERY - 1 UNIT ONLY*
$8.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Maximum operating frequency | Mechanical: 18000 time/hRated load: 1800 time/h |
| IP rating | Closed type (cover) |
| Mounting method | Socket |
| Terminal structure | Plug-in terminal |
| Ambient temperature (Operating) | -55 to 70 ? (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% RH |
| Shock resistance (Malfunction) | 200 m/s2 |
| Shock resistance (destruction) | 1000 m/s2 |
| Vibration resistance (Malfunction) | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) |
| Vibration resistance (destruction) | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) |
| Weight | Approx. 35 g |
| Shipping weight | 1 Kg |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Failure rate | 1 VDC 1 mA (failure level: Preference value,Switching frequency: 120 operations per minute) |
| Manufacturer | Omron |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Insulation resistance | Between coil and contacts: 100 MΩ min. (at 500 VDC) |
| Endurance (Electrical) | 200,000 operations min. (23 ?, Rated load, switching frequency 1,800 operations/h) |
| Endurance (Mechanical) | 100 million operations min. (switching frequency 18,000 operations/h) |
| Between contacts of same polarity | 1000 VAC 50/60 Hz 1 min |
| Between contacts of different polarity | 2000 VAC 50/60 Hz 1 min |
| Dielectric strength between coil and contacts | 2000 VAC 50/60 Hz 1 min |
MPN
MY4 DC12
