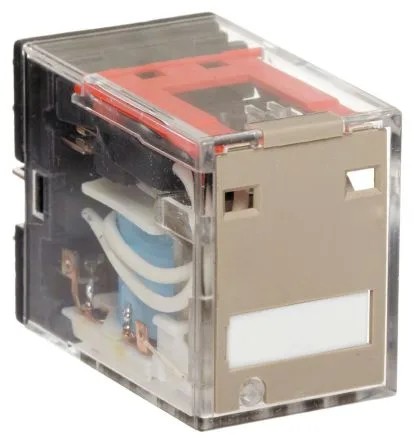

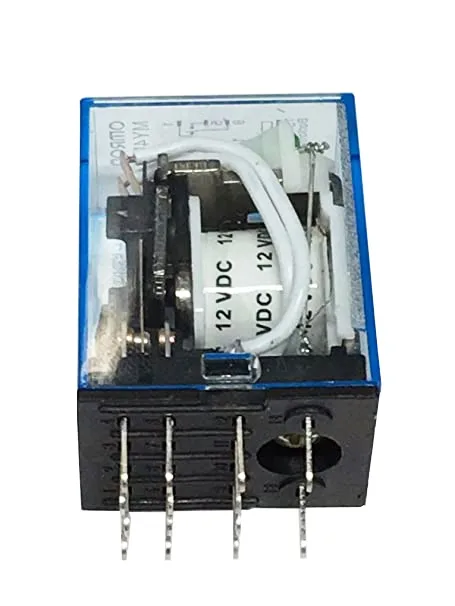

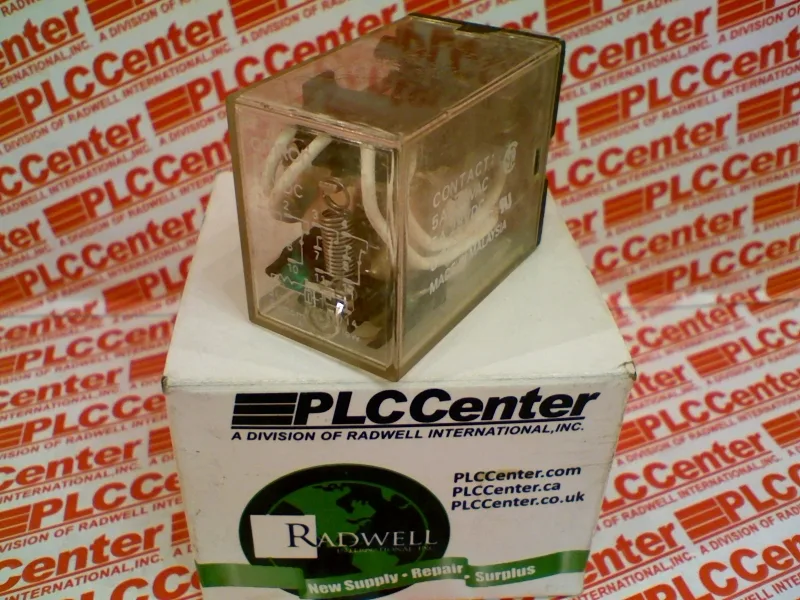

Omron MY4N DC12
MPNMY4N DC12
Miniature Power Relay s * SAME DAY DELIVERY - 10 UNIT ONLY*
$8.19 – $12.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Shock | 1000 m/s2 |
| Dielectric | -Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 min |
| Rated_load | 1800 time/h |
| Operating temperature | -55 to 60? (with no freezing or condensation) |
| Frequency | Mechanical: 18000 time/h |
| Mounting | Socket |
| Reset time | 20 |
| Resistance | 50000000 |
| Humidity max | 5 to 85% RH |
| Operating time | 20 |
| Endurance_electrical | 200,000 operations min. (23?, Rated load, switching frequency 1,800 operations/h) |
| Endurance_mechanical | 100 million operations min. (switching frequency 18,000 operations/h) |
MPN
MY4N DC12
