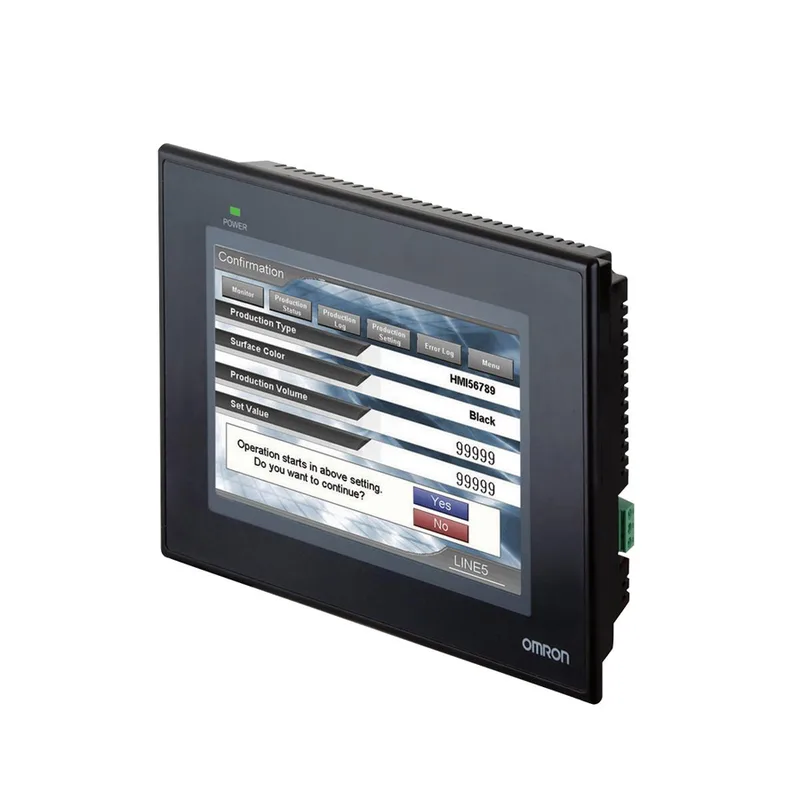

Omron NB Series, Programmable Terminal, NB7W-TW11B, 7" TFT LCD, resistive touch, 800 × 480, 65,536 colors, backlight life 50,000 h.
| Parameter | Value |
|---|---|
| Display type | 7" TFT LCD |
| Display technology | resistive type |
| Number of display colors | 65,536 |
| Parameter | Value |
|---|---|
| Weight | 0.607 Kg |
| Parameter | Value |
|---|---|
| Touch panel | Type : resistive typeOperation force : 0.5 to 0.8 NPress endurance : min. 1,000,000 times (at 25°C) |
| Product type | Programmable Terminal NB series |
| Backlight life | 50,000 hours (Typ) of operating time at the normal temperature (25°C) with 40% brightness |
| Operation force | 0.5 to 0.8 N |
| Press endurance | min. 1,000,000 times (at 25°C) |
| Dimensions (L x w x h) | 4.6cm x 20.2cm x 14.8cm |
| Display resolution (H × v) | 800 × 480 |
The NB7W-TW11B is a 7-inch TFT LCD resistive touch HMI from the Omron NB series, running at 800 × 480 resolution. The resistive touch panel requires 0.5 to 0.8 N of operation force and is rated for a minimum of 1,000,000 presses at 25 °C. Backlight life is specified at 50,000 hours typical at 25 °C with 40% brightness.
It is sourced to order against an RFQ; typical lead time is 1–10 working days.
