Omron NJ1011000

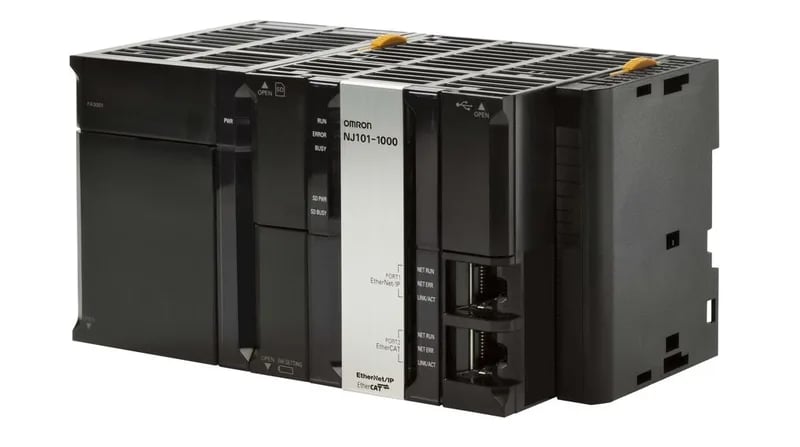

Omron NJ1011000 NJ-series CPU, 3 MB program, EtherCAT/EIP

MPNNJ1011000

Omron NJ-series CPU unit, order code NJ1011000, rack-mount controller with 3 MB program capacity, 32765 words data memory, dual Ethernet (EtherCAT and EtherNet/IP) plus USB, expandable to 2560 I/O points.

$1,798.57 – $4,565.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

NJ1011000 specifications
ParameterValue
SeriesNJ
MountingRack Mount
Communication interface typeEtherCAT;EtherNet / IP;USB
Data memory32765 words
ExpandabilityYes
Battery backupYes
Baud rate max.100 Mbps
Real-Time clockYes
Program capacity3 MB
Input (Output max.)2560 I/O Points
Programming language usedLadder Diagram (LD);Structured Text (ST)

Product details

The NJ1011000: Rack-mount NJ-series CPU with EtherCAT and EtherNet/IP on the same backplane—one less ground loop to chase if you keep the shield terminated at one end. 3 MB of program space and 32765 words of data memory will hold a medium-bottle-line sequence. Battery-backed RAM and a real-time clock keep the sequence alive through power drops without a dry contact to reset.

Rack vs rail: NJ1011000 vs NJ3011100

Current production, so no last-time-buy panic. For compliance documentation the evidence doesn't cover; if your QC needs RoHS or CE declarations, that would come with the factory shipment.

Frequently asked questions

What is NJ1011000's series and program capacity?

It is an NJ-series CPU with a program capacity of 3 MB and data memory of 32765 words.

Will NJ1011000 drop into a panel specified for NJ3011100?

No, because NJ1011000 is rack-mount while NJ3011100 is DIN rail mount. The mounting method and backplane integration are different, so it is not a direct mechanical swap.

What are the communication interfaces on NJ1011000?

It has built-in EtherCAT, EtherNet/IP, and USB ports.

MPN
NJ1011000
