Omron NJ501-1300 — Motion Controllers

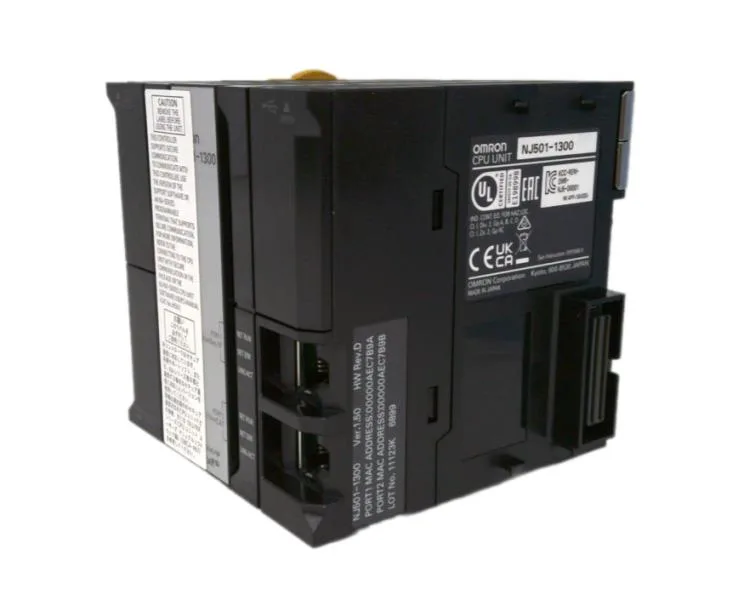

Omron NJ501-1300 Machine Automation Controller, EtherCAT, 32

MPNNJ501-1300
Active

Omron NJ501 Series Machine Automation Controller CPU, NJ501-1300, EtherCAT/Ethernet/USB, 32K Words memory, expandable 40 modules, battery backup, DIN rail mount.

$3,573.27 – $7,704.51Ref. price · indicative, final on quote
Omron NJ501-1300 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

NJ501-1300 — Identification
ParameterValue
SeriesNJ501
SoftwareSYSMAC Studio
FeaturesBattery Backup
Display typeNo Display
NJ501-1300 — Memory
ParameterValue
Memory size32K Words
NJ501-1300 — Communication
ParameterValue
Communication interfacesEtherCAT, Ethernet, USB
NJ501-1300 — I/O & Expansion
ParameterValue
Expandable40 Modules (3 Racks) Max
NJ501-1300 — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
NJ501-1300 — Mechanical
ParameterValue
Mounting typeDIN Rail
NJ501-1300 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, KC, Lloyd, NK
NJ501-1300 — Other specifications
ParameterValue
Weight1.2 lbs (544.3 g)

Product details

The Omron NJ501-1300 is an active machine automation controller from the NJ501 series. It brings EtherCAT, Ethernet/IP, and USB interfaces to the panel, running at 100 Mbps. Rated for up to 2560 I/O points and 32K words of memory, it handles motion control for up to 16 axes. It expands to 40 modules across 3 racks and runs on 5V DC with a battery backup to hold parameters. SYSMAC Studio software programs it in ladder or structured text.

The same footprint as the NJ501-1400, so if you're swapping one for the other, the panel wiring stays put. Communications are EtherCAT for motion and Ethernet/IP for the HMI or SCADA.

Frequently asked questions

Will the NJ501-1300 drop into a panel that was built for the NJ501-1400?

Yes, the NJ501-1300 shares the same DIN-rail mounting, dimensions, and communication interfaces as the NJ501-1400. No rewiring is needed.

What compliance approvals does the NJ501-1300 carry?

It carries CE, cULus, KC, Lloyd, and NK approvals.

How much does the NJ501-1300 weigh?

It weighs 1.2 lbs (544.3 g).
