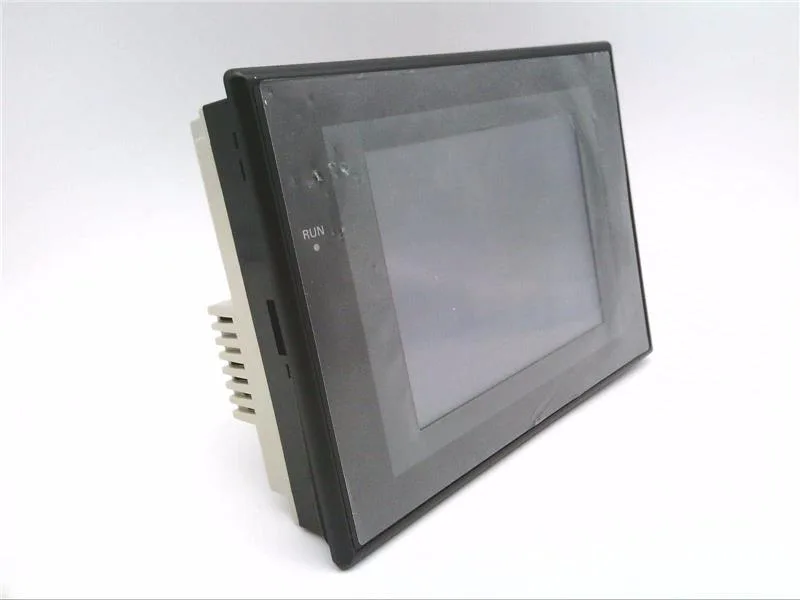

The Omron NS5-MQ00B-V2 is an NS-Series programmable terminal — a 5.7" operator interface for machine control, data entry, and status monitoring on automated lines. Its STN LCD panel delivers 320 x 240 pixel resolution with 256 colours, adequate for displaying machine states, alarm pages, and basic trend screens without the viewing-angle demands of a TFT. Communication runs through two RS-232C ports (Port A and Port B) plus a USB 1.1 port — three ports total, letting you talk to a PLC on one serial link and a barcode scanner or printer on the other while using USB for programming uploads. Powered from a 24 VDC supply, standard for panel-mount HMIs in industrial control cabinets.
Omron NS5-MQ00B-V2 NS-Series HMI, 5.7" STN, 256 colours, EOL
MPNNS5-MQ00B-V2
End of Life
Omron NS-Series programmable terminal, model NS5-MQ00B-V2, 5.7" STN LCD display, 320 x 240 pixels, 256 colours, RS-232C and USB 1.1 ports, 24 VDC supply.
$1,344.00 – $2,482.25Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NS |
| Parameter | Value |
|---|---|
| Display type | STN LCD |
| Parameter | Value |
|---|---|
| Port type | RS-232C (Port A, Port B);USB1.1 |
| Dimensions | 19.5 x 5.4 x 14.2 cm |
| Size | 5.7 in |
| Product type | NS-Series Programmable Terminal |
| Supply voltage | 24 V dc |
| Number of ports | 3 |
| Number of colour | 256 |
| Display resolution | 320 x 240 pixels |
Product details
Frequently asked questions
What series does this terminal belong to?
It is part of the Omron NS Series of programmable terminals, a mature line of operator interfaces for factory automation.
What communication ports does it have?
Two RS-232C ports (labelled Port A and Port B) and one USB 1.1 port, for a total of three ports. The serial ports handle PLC and peripheral connections; the USB port is used for programming transfers.
What are the key display specifications?
A 5.7-inch STN LCD with 320 x 240 pixel resolution and support for 256 colours. This is sufficient for machine status screens, alarm pages, and basic data entry interfaces.
How do I source this part now that it is EOL?
Submit an RFQ. We carry last-time-buy stock and can quote available units. Typical lead time is 1–10 working days for in-stock pieces. No price or stock count is listed here — the RFQ confirms current availability.
