5.7" color HMI for panel integration

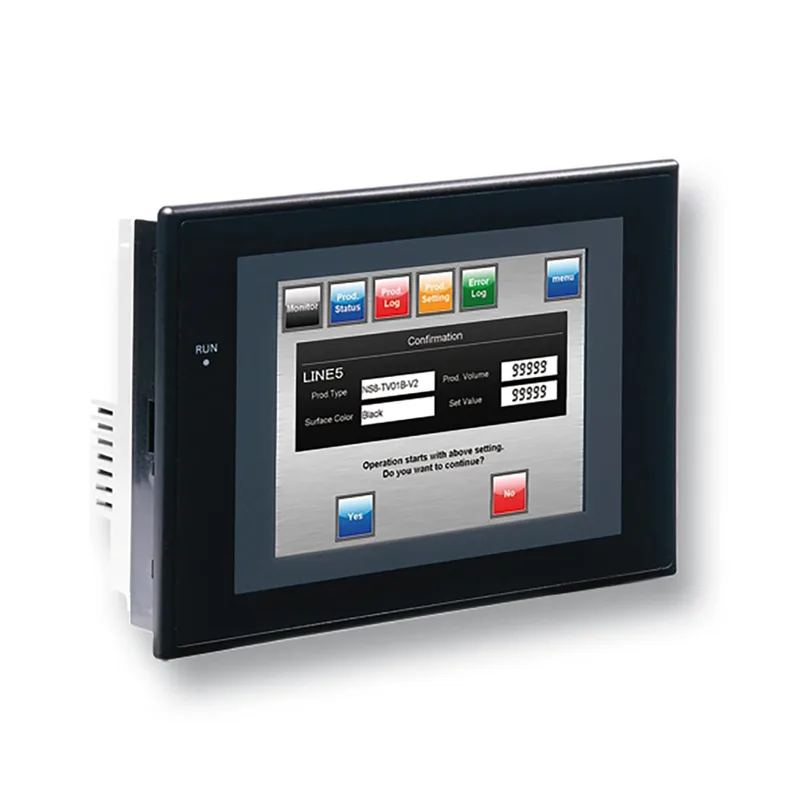

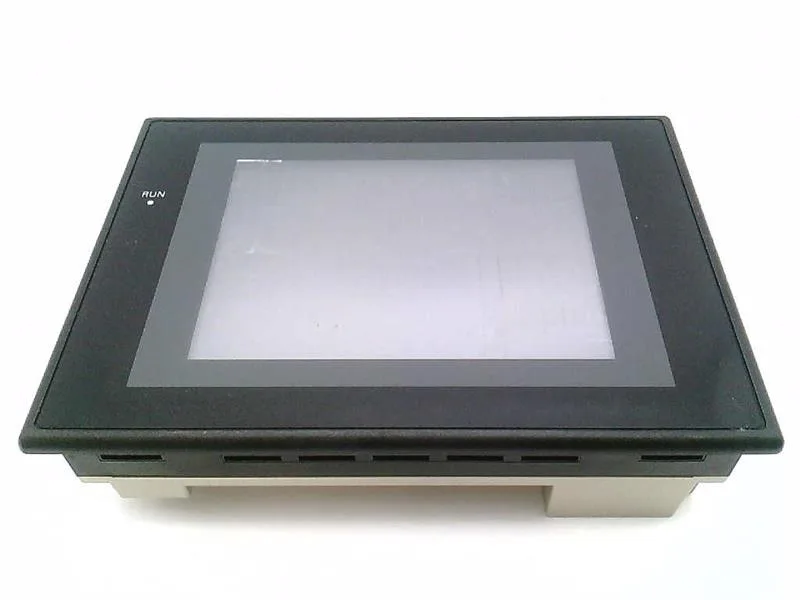

The Omron NS5-TQ11B-V2 is a 5.7" color touchscreen HMI from the NS Series, running on 24 VDC and rated IP65/NEMA 4 at the front bezel. That IP65 rating means the display face withstands hose-directed water and dust ingress — suitable for washdown zones on food, beverage, or packaging lines where the panel front sees routine cleaning. The memory card interface (likely CompactFlash on this generation) supports recipe transfer, firmware updates, and alarm logging without a network connection.
The NS5-TQ11B-V2 carries an eol_hot lifecycle flag alongside an Active product status, which typically means the manufacturer has announced end-of-life but still supports the part through a defined last-time-buy window. For a brownfield line running an NS-series HMI, this is the moment to secure a service spare or plan the migration path.

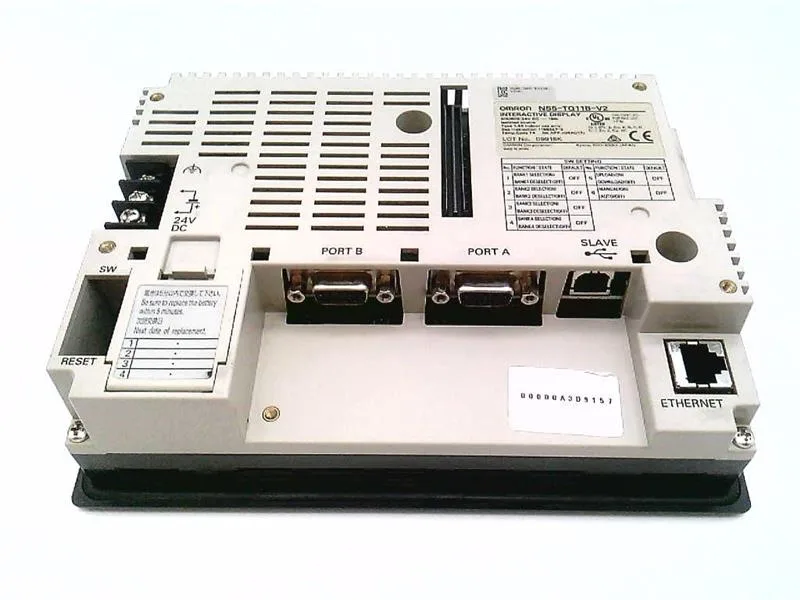

The 24 VDC supply is standard for industrial control panels; expect to pull roughly 0.5–1 A depending on backlight brightness and expansion modules. The IP65/NEMA 4 front is a sealed bezel — the rear of the unit is not sealed, so mount it in a panel with a gasket cutout to protect the electronics from the same washdown environment.
