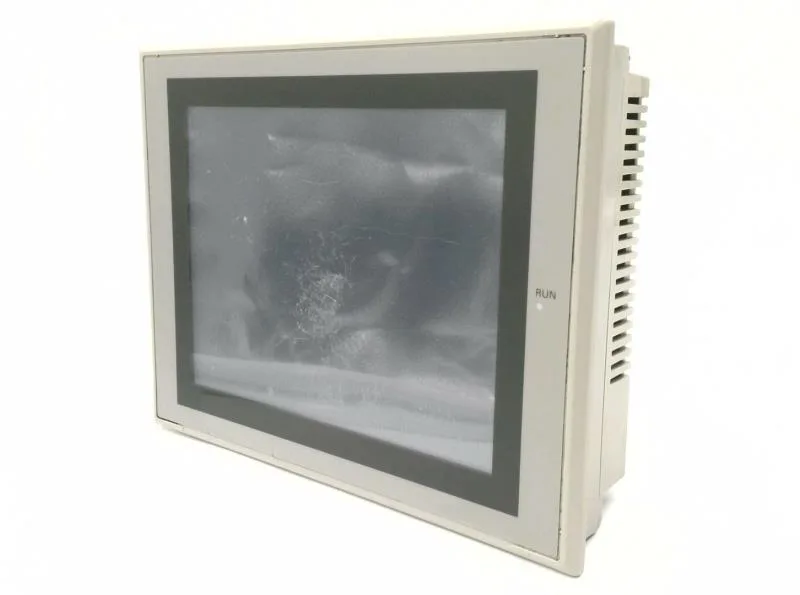

The NS8-TV00-ECV2 is an 8.4-inch TFT programmable terminal from the Omron NS Series, running at 680x480 resolution with 256 colors. This is the display for an HMI that sits between a PLC and an operator — the resolution and color depth are adequate for basic machine status screens and alarm lists, but not for high-density graphics or photo-realistic panels.
The 8.4-inch diagonal and 680x480 resolution define the physical cutout and the usable screen area. The TFT display is a passive-matrix color LCD — adequate for text and simple graphics, but viewing angle and contrast are narrower than modern active-matrix panels. The 256-color palette limits gradient fills and photo-quality bitmaps; if the application requires a color trend chart or a detailed machine graphic, this panel will look blocky. The NS Series uses a proprietary backplane protocol — not Ethernet or serial out of the box — so integration requires the matching Omron NS-series CPU or a gateway module.
