Omron NS8-TV00B-V2

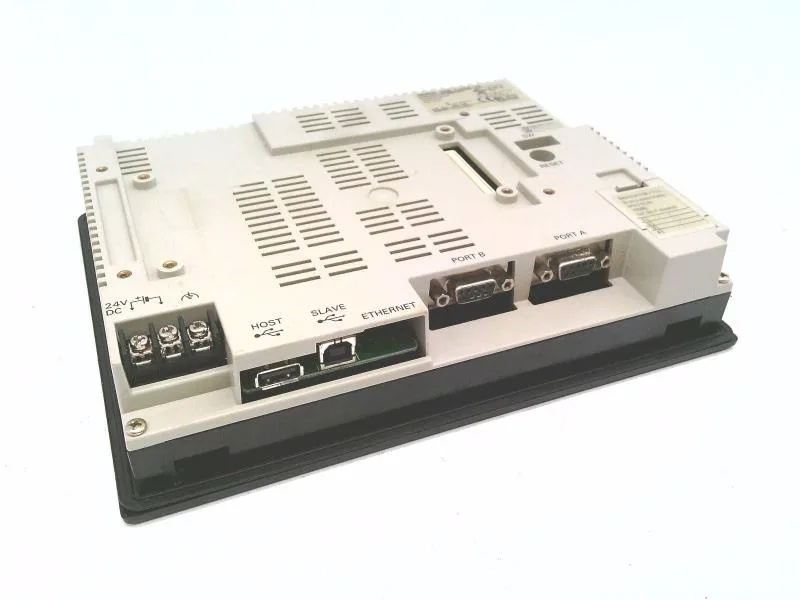

Omron NS8-TV00B-V2 Touchscreen HMI, 8.4" Color, 24 VDC, IP65

MPN NS8-TV00B-V2
Obsolete

Omron NS series, Type Touchscreen, NS8-TV00B-V2, 8.4" color display, 24 VDC, IP65/NEMA 4, Memory Card Interface.

$1,101.00 – $3,249.93 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

NS8-TV00B-V2 specifications
ParameterValue
SeriesNS
Display typeColor
Product typeTouchscreen
Supply voltage24 VDC
Temp operating max50 °C
Temp operating min0 °C
PackageBulk

Product details

Integrator's note on the NS8-TV00B-V2

The Omron NS8-TV00B-V2 is an 8.4-inch color touchscreen HMI from the NS series, running on a 24 VDC supply. It's built for panel environments that see washdown — the IP65-rated front and NEMA 4 enclosure keep water jets and dust out of the electronics. The memory card interface lets you back up recipes or log data without pulling the unit offline.

Environmental and mounting fit

Rated for 0°C to 50°C operating ambient, so it's fine inside a ventilated panel but not for unheated outdoor cabinets in freezing climates. The IP65/NEMA 4 front means you can hose down the panel face without worrying about the display seal. Black case, standard panel-mount cutout for the 8.4-inch frame.

MPN
NS8-TV00B-V2
