Omron NS8-TV01B-V2 — HMI Operator Interfaces

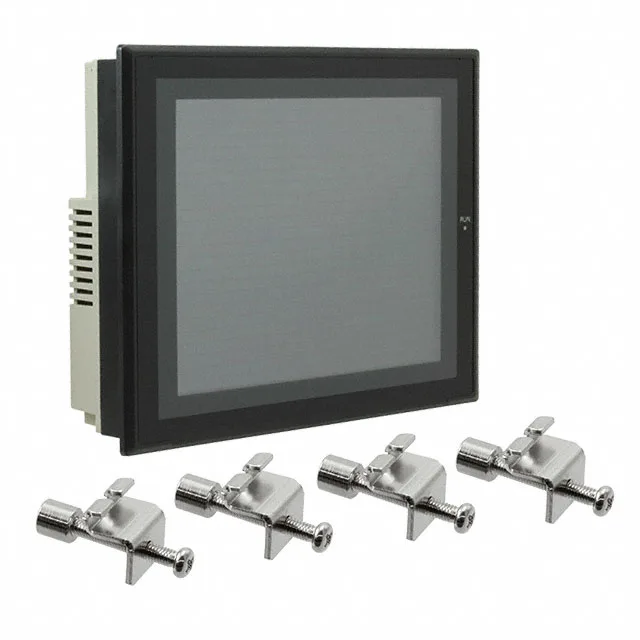

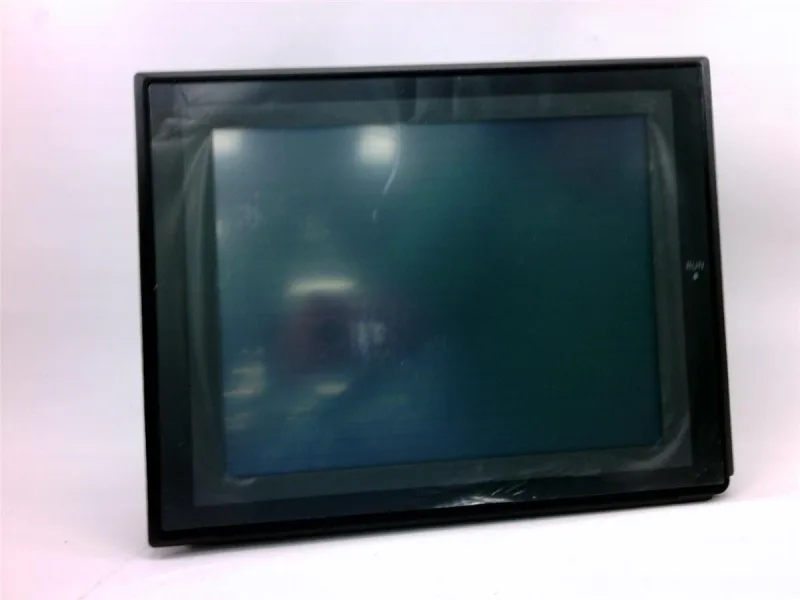

Omron NS8-TV01B-V2 NS Series HMI Touchscreen 8.4" Color

MPNNS8-TV01B-V2
End of Life

Omron NS8-TV01B-V2 Machine Interface — now discontinued, supplied from remaining surplus and broker stock.

$1,515.00 – $3,657.93Ref. price · indicative, final on quote
Omron NS8-TV01B-V2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

NS8-TV01B-V2 — Identification
ParameterValue
SeriesNS
For use with / related productsMultiple Manufacturer, Multiple Product
NS8-TV01B-V2 — Display
ParameterValue
Display typeColor
Display technologyTouchscreen
NS8-TV01B-V2 — Electrical
ParameterValue
Supply voltage24VDC
NS8-TV01B-V2 — Environmental
ParameterValue
Ingress protection (IP / NEMA)IP65 - Dust Tight, Water Resistant; NEMA 4
Operating temperature0°C ~ 50°C
NS8-TV01B-V2 — Other specifications
ParameterValue
FeaturesMemory Card Interface
Case colorBlack
Size - display8.4"

Product details

Overview

The NS8-TV01B-V2 is an Omron NS Series HMI touchscreen with an 8.4" color display at 640 × 480 dots, powered by 24 VDC at 25 W, and sealed to IP65. It includes Ethernet support and a Memory Card Interface.

Omron lists the NS8-TV01B-V2 as discontinued. For existing panels, units are available through surplus and broker channels; send an RFQ to confirm quantity and lead time.

Selection comparison

Compared to the NS10-TV01B-V2, the NS8-TV01B-V2 has an 8.4" frame versus 10.4". Choose the NS10-TV01B-V2 when the panel cut-out and display area require the larger 10.4" size.

MPN
NS8-TV01B-V2
