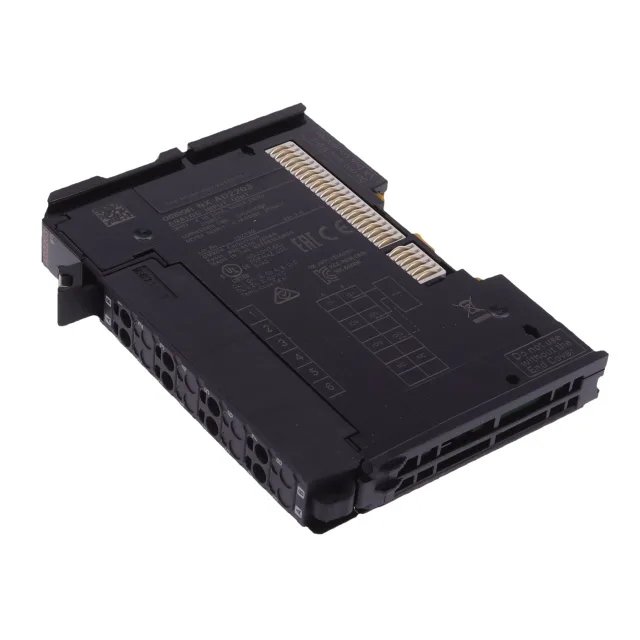

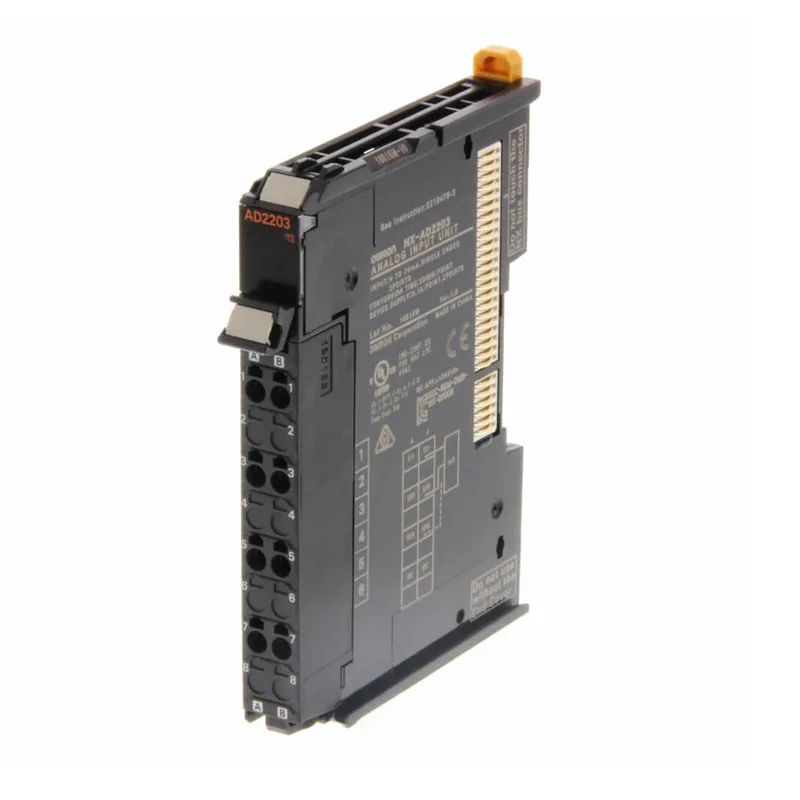

Two analog input channels on a single NX slice. The NX-AD2203 is a 2-channel analog input module for the Omron NX series, DIN rail mounted with spring-clamp terminals. Rated for 0°C to 55°C ambient operation. Approvals include CE, cULus, C-Tick, KC, Lloyd, NK.
Mounting and wiring
Mounts to a DIN rail in the NX backplane chain. Termination is spring-clamp, accepting solid or stranded wire. Follow Omron's NX wiring practice for strip length and ferrule sizing. Operating temperature range 0°C to 55°C covers standard industrial cabinet environments.
