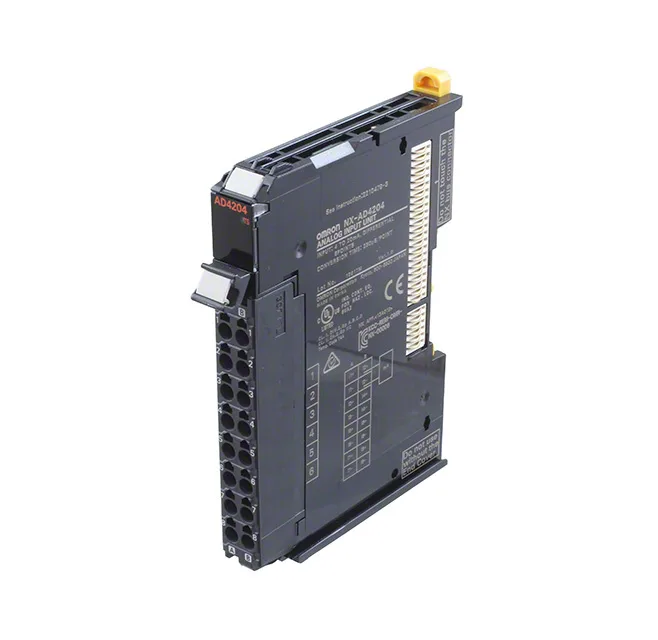

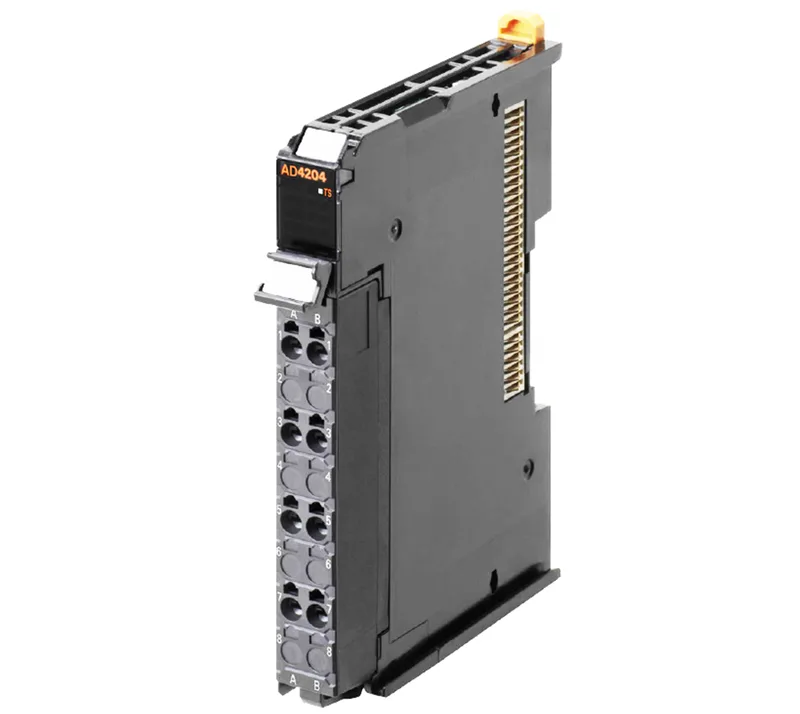

Omron NX-AD4204

Omron NX-AD4204 Analog Input Module, 8-Channel, Current, 1/8000 Resolution

MPN NX-AD4204
Active

Omron NX-AD4204 Controllers Plc Modules.

$266.32 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

NX-AD4204 specifications
ParameterValue
SeriesNX
Product typeInput Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.154 lb (69.85 g)
PackageBulk

Product details

Overview

The NX-AD4204 is an Omron NX-series analog input module providing 8 current-input channels with differential input method and a resolution of 1/8000. It is currently in active production. The module carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals, suiting it for global machine builds and marine applications.

Compared to the 4-channel NX-AD3203, the NX-AD4204 doubles the analog input count to 8 channels while keeping the same differential current input type and 1/8000 resolution. Choose the NX-AD4204 when the design requires more analog points per module.
