8-Channel Analog Current Input for NX Racks

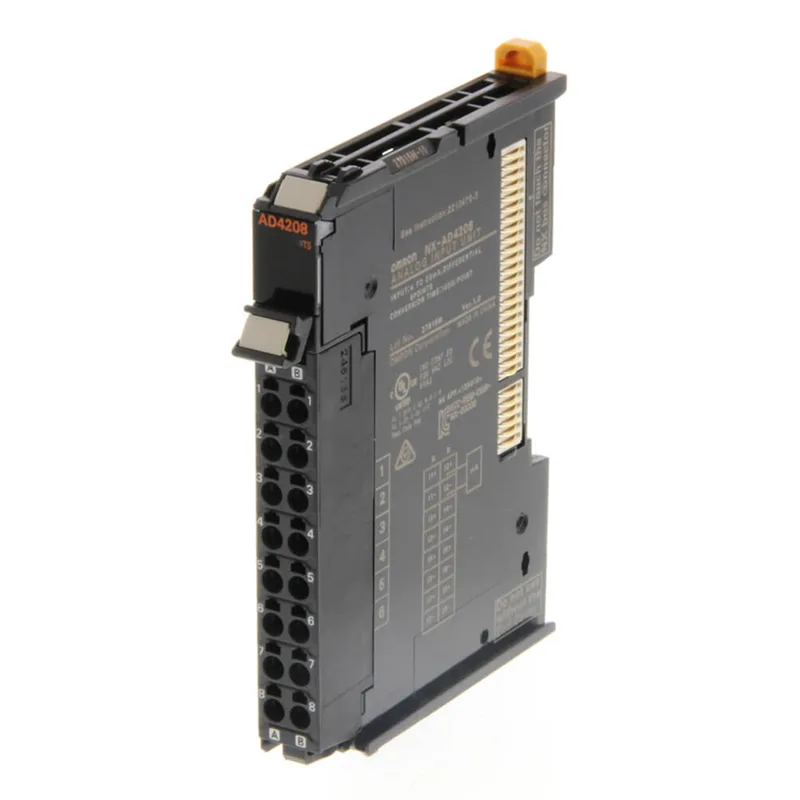

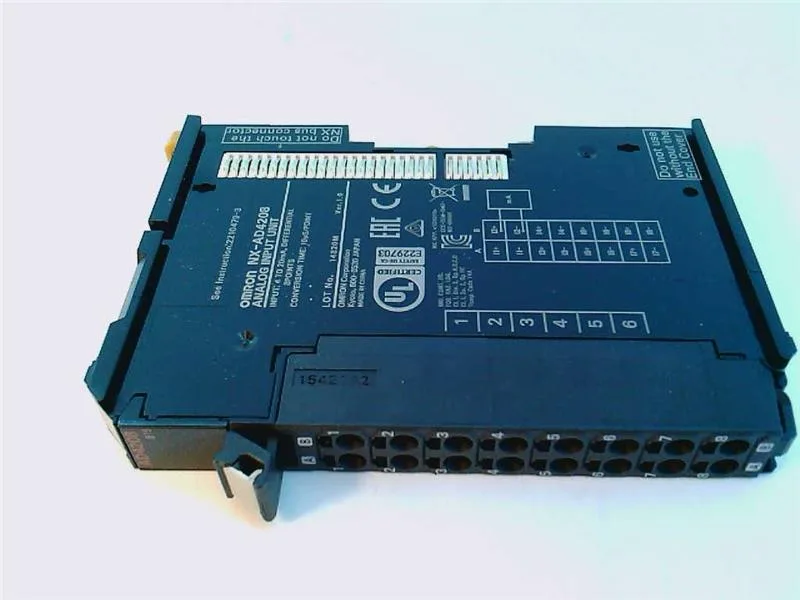

The Omron NX-AD4208 is an 8-channel analog input module. It mounts on a DIN rail and connects via spring terminals. Operating temperature range is 0°C to 55°C.
Omron NX-AD4208, 8-Channel Analog Current Input Module, Acti
MPNNX-AD4208
Active
Omron NX-AD4208, 8-channel analog current input module, 24V, spring terminal, DIN rail.
$388.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NX |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Analog |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.154 lb (69.85 g) |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Input Module |
Product details
Frequently asked questions
What is the difference between NX-AD4208 and NX-AD4203?
The NX-AD4208 has eight analog current inputs; the NX-AD4203 has four. Both use the same mechanical package, spring terminals, and approvals. You cannot drop an NX-AD4208 into a panel wired for the 4-channel version without adding field wiring and reconfiguring the I/O map.
Will NX-AD4208 work in a panel originally specified for NX-AD4203?
Physically yes — same DIN rail footprint, same backplane interface, same spring terminal pitch. But the NX-AD4208 requires eight field inputs; a panel wired for four channels will leave four terminals unconnected. The I/O configuration in the CPU must also be updated to map eight input words instead of four.
What approvals does the NX-AD4208 carry?
CE, cULus, C-Tick, KC, Lloyd, and NK. These cover Europe, North America, Australia, South Korea, and marine classification societies.
MPN
NX-AD4208
