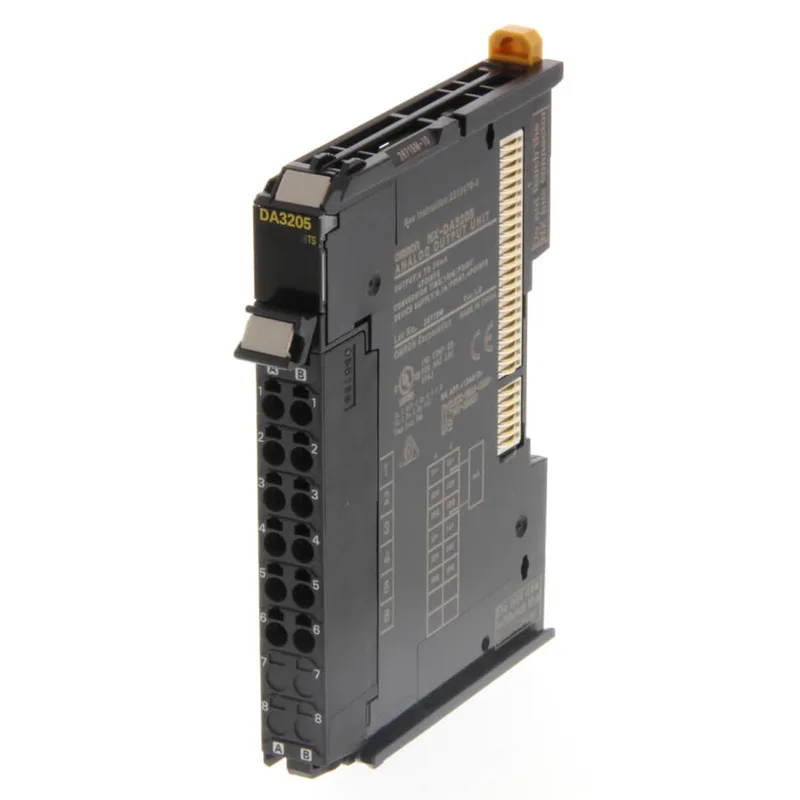

Omron NX series, NX-DA3205, Output Module, 4 Analog Outputs, DIN Rail, Spring Terminal, 0°C~55°C, CE/cULus/C-Tick/KC/Lloyd/NK approved.
| Parameter | Value |
|---|---|
| Series | NX |
| Type | Output Module |
| Compatible / related products | NX Series |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 4 - Analog |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |
The Omron NX-DA3205 is a 4-channel analog output module within the NX I/O platform. It mounts via DIN rail and terminates through spring-clamp terminals, rated for 0 °C to 55 °C ambient. The module draws its power and communication from the NX backplane; no external loop supply is required for the output stage.
Mounts on DIN rail via spring-clamp terminals.
It is an output module with 4 analog output channels, part of the Omron NX I/O series.
It is approved under CE, cULus, C-Tick, KC, Lloyd, and NK standards.
Yes, mounting type is DIN rail with spring-clamp terminals.
