NX-EC0142 is an active NX-series incremental encoder input unit. One digital input, spring terminal, DIN rail. Rated 0°C to 55°C. Sourced to order from factory channel.
Spring terminal. DIN rail mount. CE, cULus, C-Tick, KC, Lloyd, NK approvals.

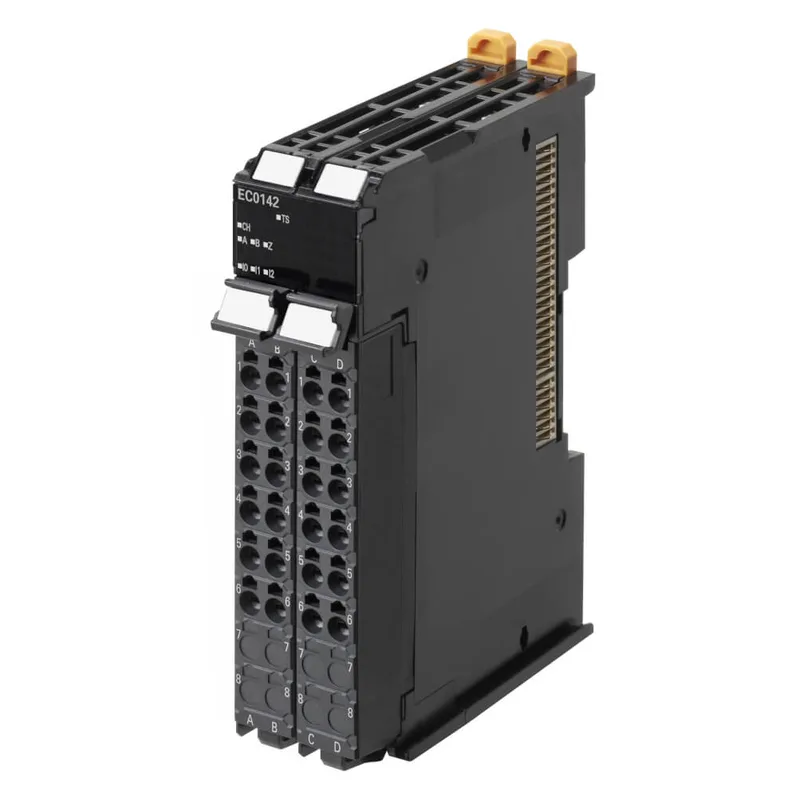

Omron NX-EC0142 NX Series Input Module, Active
MPNNX-EC0142
Active

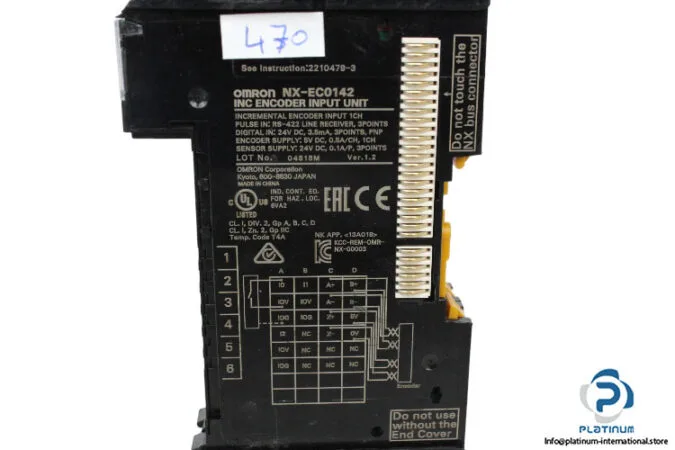

Omron NX-EC0142 NX Series Input Module, Incremental Encoder Input Unit, 1 Digital Input, Spring Terminal, DIN Rail Mount, Active Production.
$304.29 – $601.66Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | NX |
| For use with / related products | NX Series |
Inputs
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 1 - Digital |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
Mechanical
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Mounting type | DIN Rail |
Approvals
| Parameter | Value |
|---|---|
| Agency approvals | CE, cULus, C-Tick, KC, Lloyd, NK |
Other specifications
| Parameter | Value |
|---|---|
| Type | Input Module |
| Weight | 0.287 lb (130.18 g) |
Product details
Frequently asked questions
What is the closest functional second-source to NX-EC0142?
The NX-EC0122 is a same-series, same-1-input incremental encoder input unit but weighs less, which may indicate different internal circuitry. Check encoder compatibility before substitution.
