Omron NX-EC0222 — Digital Input Modules

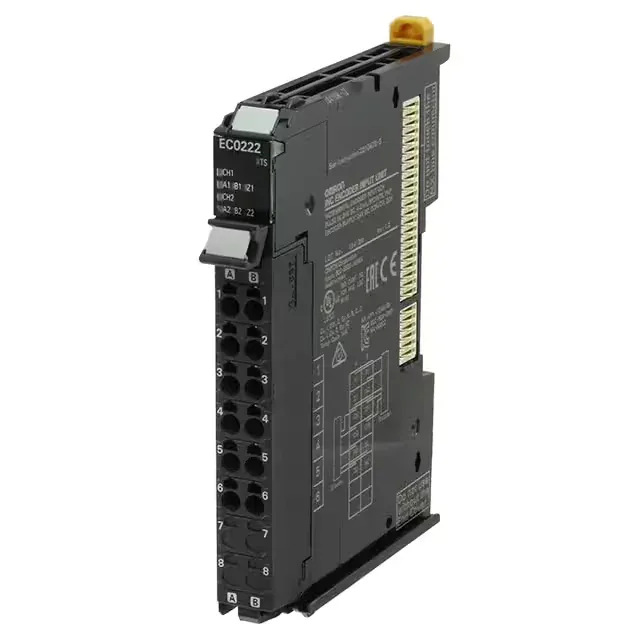

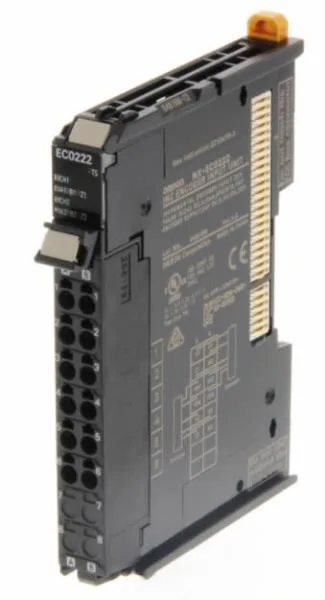

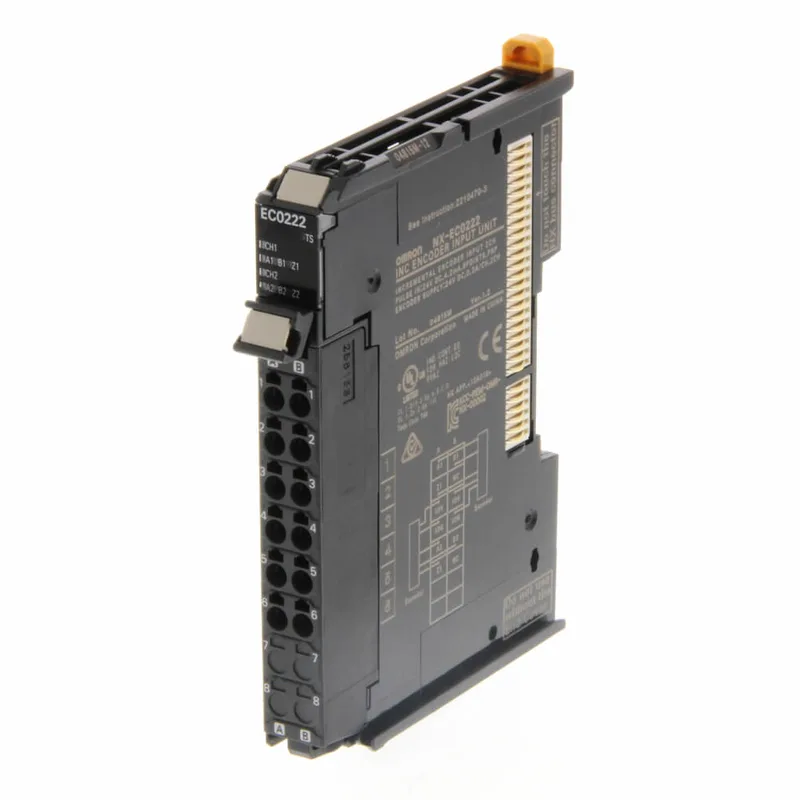

Omron NX-EC0222 Encoder Input Module, 2 Digital Channels

MPNNX-EC0222
Active

Omron NX-EC0222 NX-series incremental encoder input unit, 2 digital inputs, DIN rail mount, spring terminal, active.

$223.85 – $614.61Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

NX-EC0222 — Identification
ParameterValue
SeriesNX
For use with / related productsNX Series
NX-EC0222 — Inputs
ParameterValue
Digital inputs (count and type)2 - Digital
NX-EC0222 — Environmental
ParameterValue
Operating temperature range0°C~55°C
NX-EC0222 — Mechanical
ParameterValue
Termination styleSpring Terminal
Mounting typeDIN Rail
NX-EC0222 — Approvals
ParameterValue
Agency approvalsCE, cULus, C-Tick, KC, Lloyd, NK
NX-EC0222 — Other specifications
ParameterValue
TypeInput Module
Weight0.154 lb (69.85 g)

Product details

Two encoder inputs in one NX slot

The Omron NX-EC0222 is an NX-series incremental encoder input module delivering two digital encoder inputs on a single DIN-rail unit with spring-clamp terminals. Rated for 0°C to 55°C operation, with approvals covering CE, cULus, C-Tick, KC, Lloyd, and NK.

DIN-rail mounted via the NX-series backplane connection. Spring-clamp terminals for wiring of solid or ferruled stranded conductors. Approval agency listing includes CE, cULus, C-Tick, KC, Lloyd, NK, supporting global panel acceptance.

Frequently asked questions

What is the closest functional second-source to NX-EC0222?

The NX-EC0122 is the single-channel version from the same NX series, with identical mechanicals and wiring. Use it if only one encoder input is needed.

Will NX-EC0222 drop into a panel specified around NX-EC0122 without rewiring?

Yes — both modules use the same NX backplane interface, DIN-rail mount, and spring-termination pattern. The first channel wiring remains unchanged; the second channel is an additional input.

What approvals does NX-EC0222 carry?

CE, cULus, C-Tick, KC, Lloyd, NK.

What type is NX-EC0222?

It is an Input Module, specifically an NX-series incremental encoder input unit.

What series is NX-EC0222?

The NX series from Omron.
