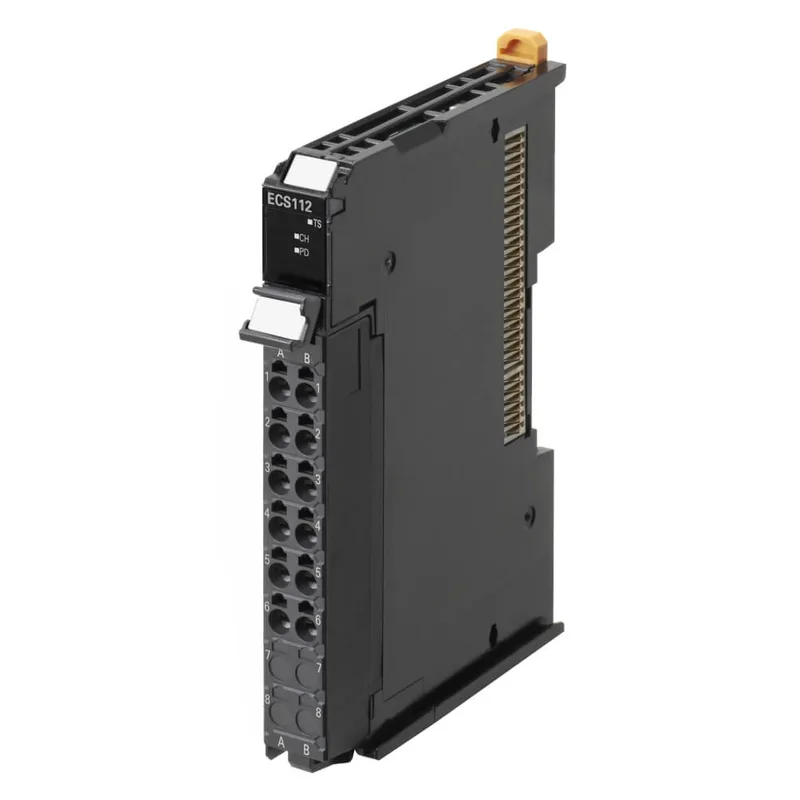

Omron NX Series NX-ECS112 Motion Control Module, 1 digital input, spring terminal, DIN rail mount, CE/cULus.
| Parameter | Value |
|---|---|
| Series | NX |
| For use with / related products | NX Series |
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 1 - Digital |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Agency approvals | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Motion Control Module |
| Weight | 0.143 lb (64.86 g) |
The Omron NX-ECS112 is an active NX Series Motion Control Module with a single digital input, terminated via spring terminals and mounted on DIN rail. Rated for 0°C to 55°C ambient, carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals — enough documentation for most global panel certifications.
Bulk packaged; no individual box, so factor that into your kitting planning if it goes into a spares cabinet.
It is a Motion Control Module with one digital input, part of the NX Series.
The module is approved under CE, cULus, C-Tick, KC, Lloyd, and NK — covering European, North American, Australian, Korean, and maritime (Lloyd's, Nippon Kaiji) standards.
