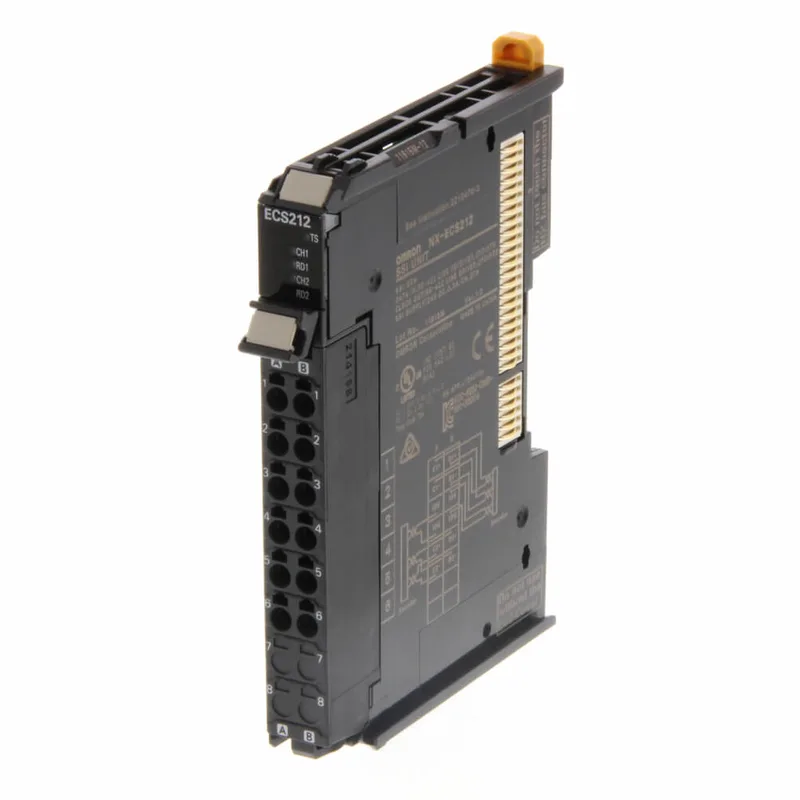

Omron NX-ECS212

Omron NX-ECS212 Motion Control Module, 2 Digital Inputs

MPN NX-ECS212
Active

Omron NX-ECS212 Motion Control Module, NX Series, 2 Digital Inputs, Spring Terminal, DIN Rail, 0°C~55°C, CE, cULus, C-Tick, KC, Lloyd, NK approved.

$299.59 – $711.34 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

NX-ECS212 specifications
ParameterValue
SeriesNX
Product typeMotion Control Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.143 lb (64.86 g)
PackageBulk

Product details

Motion control module with 2 digital inputs for the NX platform

The Omron NX-ECS212 is a motion control module in the NX Series, carrying 2 digital inputs and terminating through spring terminals. Approvals include CE, cULus, C-Tick, KC, Lloyd, and NK — the module is accepted across European, North American, Australian, Korean, and marine (Lloyd, NK) regulatory jurisdictions. That breadth covers most industrial and shipboard control panels without additional certification work.

Active lifecycle — no end-of-life concern

Because the part is active, sourcing is straightforward: quantities are quoted to order against the BOM line. No surplus or broker channel is needed for this order code.

Spring terminal wiring and digital input specification

The spring terminal termination style means field wiring is tool-less for solid or ferruled stranded wire — push the conductor in and the cage clamps it. This speeds cabinet wiring compared to screw terminals and eliminates the risk of screw torque drift over temperature cycles. The module provides 2 digital inputs. In a motion control context, these typically serve as home-limit or over-travel sensors for the axis being controlled. The exact input characteristics (sink/source, nominal voltage, filter time) are defined in the NX-ECS212 hardware manual; the spring terminal pinout maps to the NX bus coupler's field-power distribution.
